Evaporative Emissions (EVAP) System Components: Notes

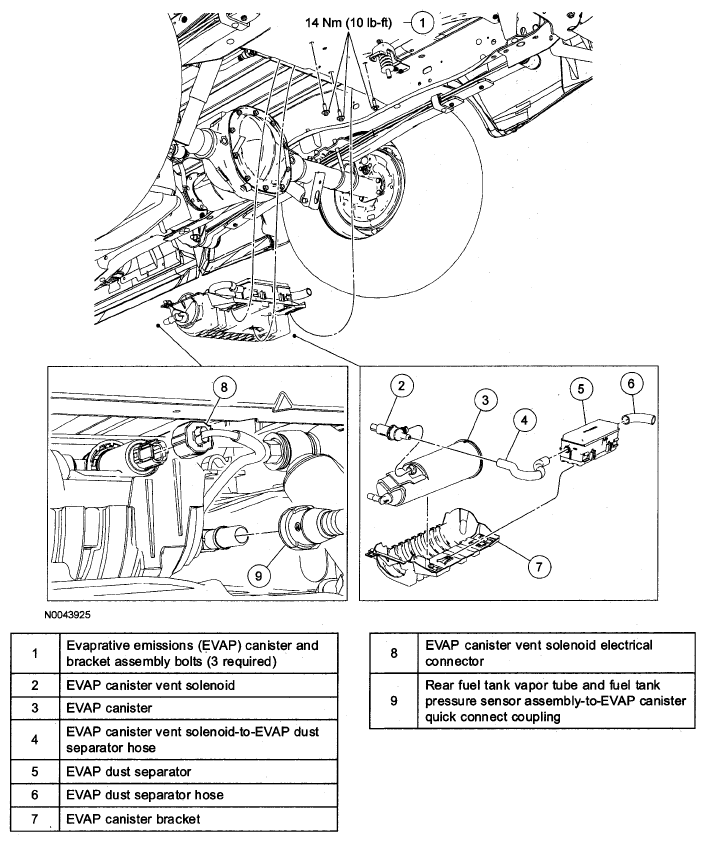

Fig 1: Evaporative Emissions (EVAP) System Replacement Components With Torque Specifications
G04930132Courtesy of MAZDA MOTORS CORP.
