Axle And Differential Front Disassembly / Assembly: Notes

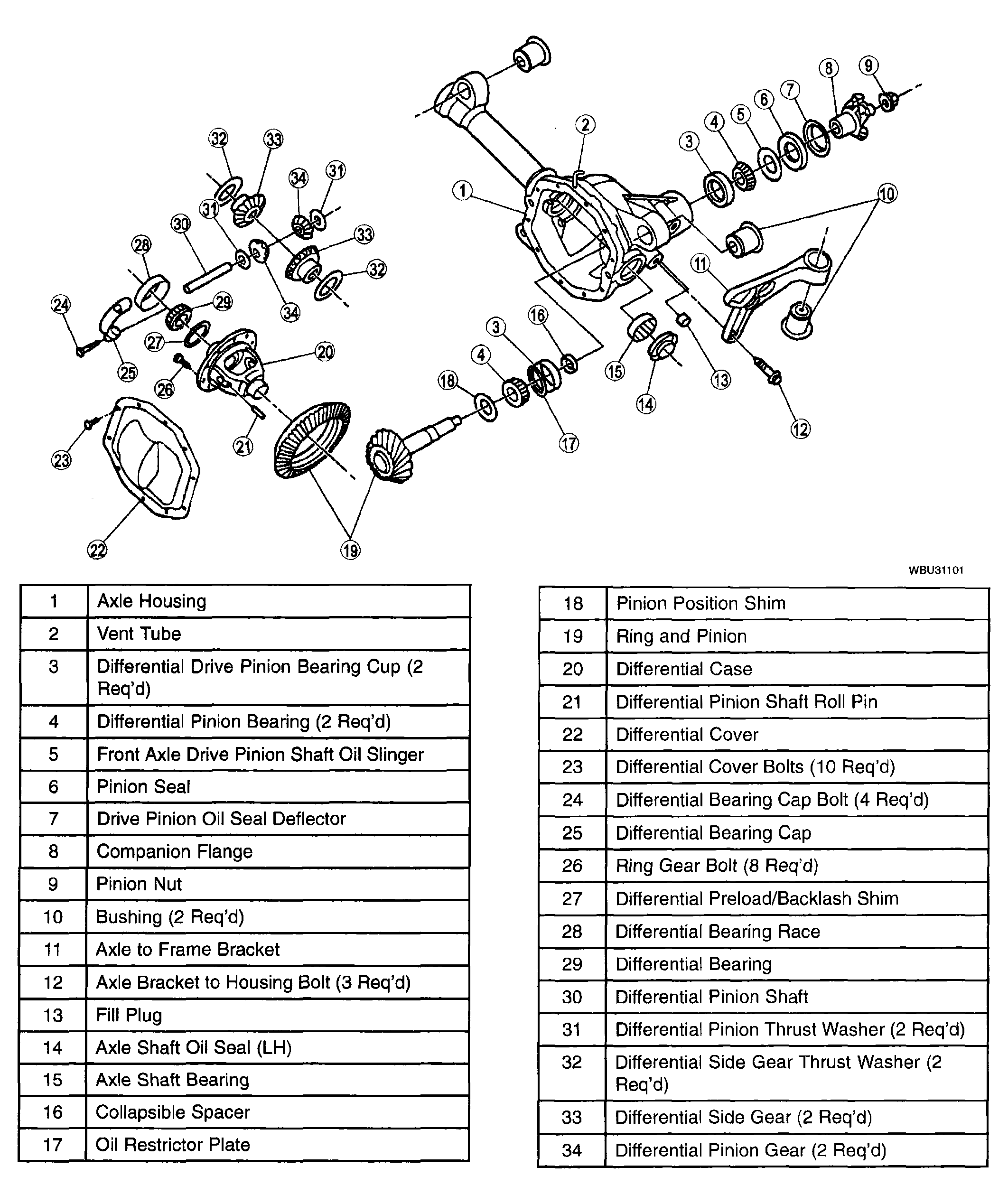

Fig 1: Identifying Axle And Differential Components
G04308863Courtesy of MAZDA MOTORS CORP.
