STOPLAMP Switch: Notes

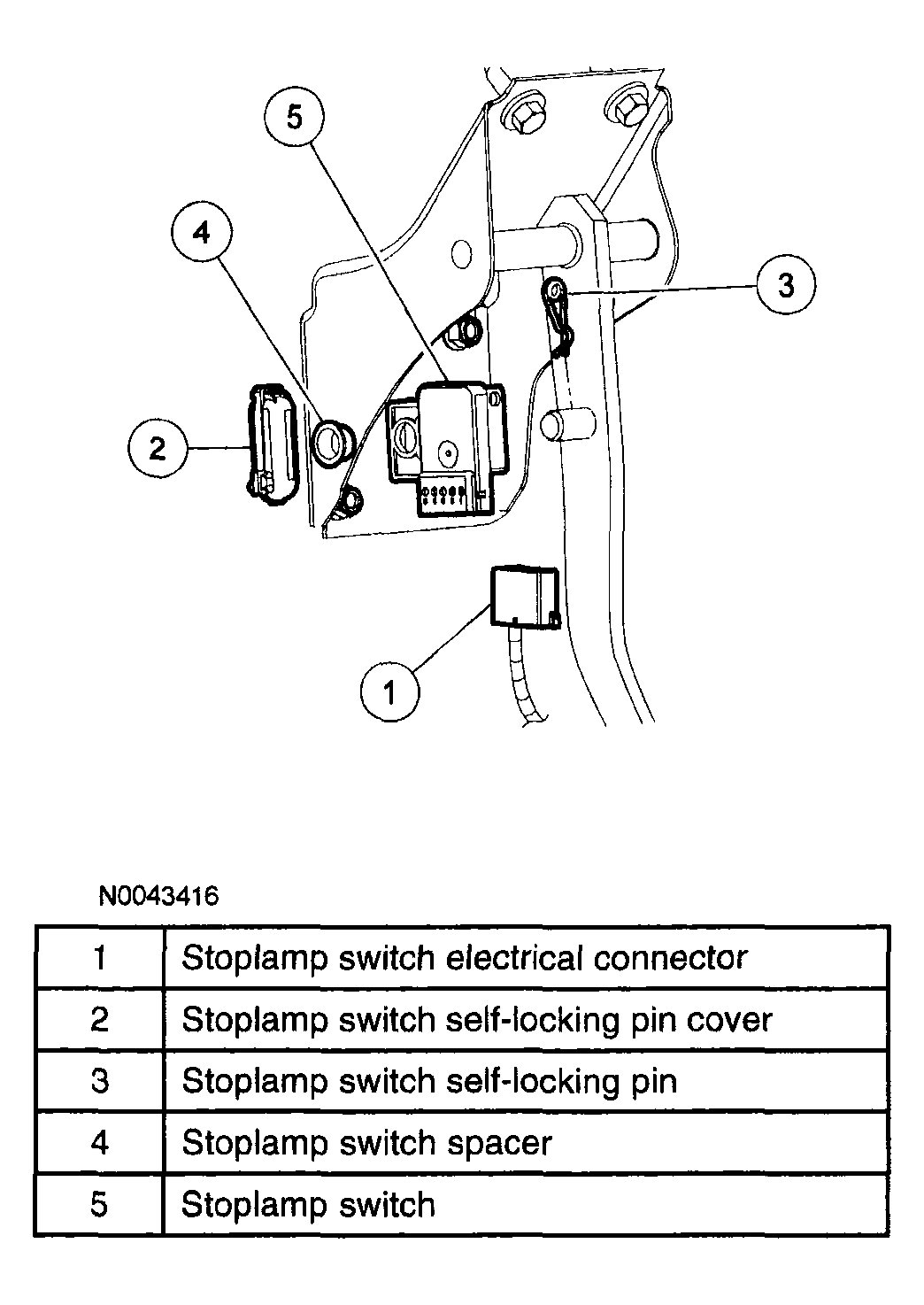

Fig 1: Removing/Installing Stop Lamp Switch And Associated Components
G04310514Courtesy of MAZDA MOTORS CORP.
