Instrument Panel Dimmer Switch: Notes

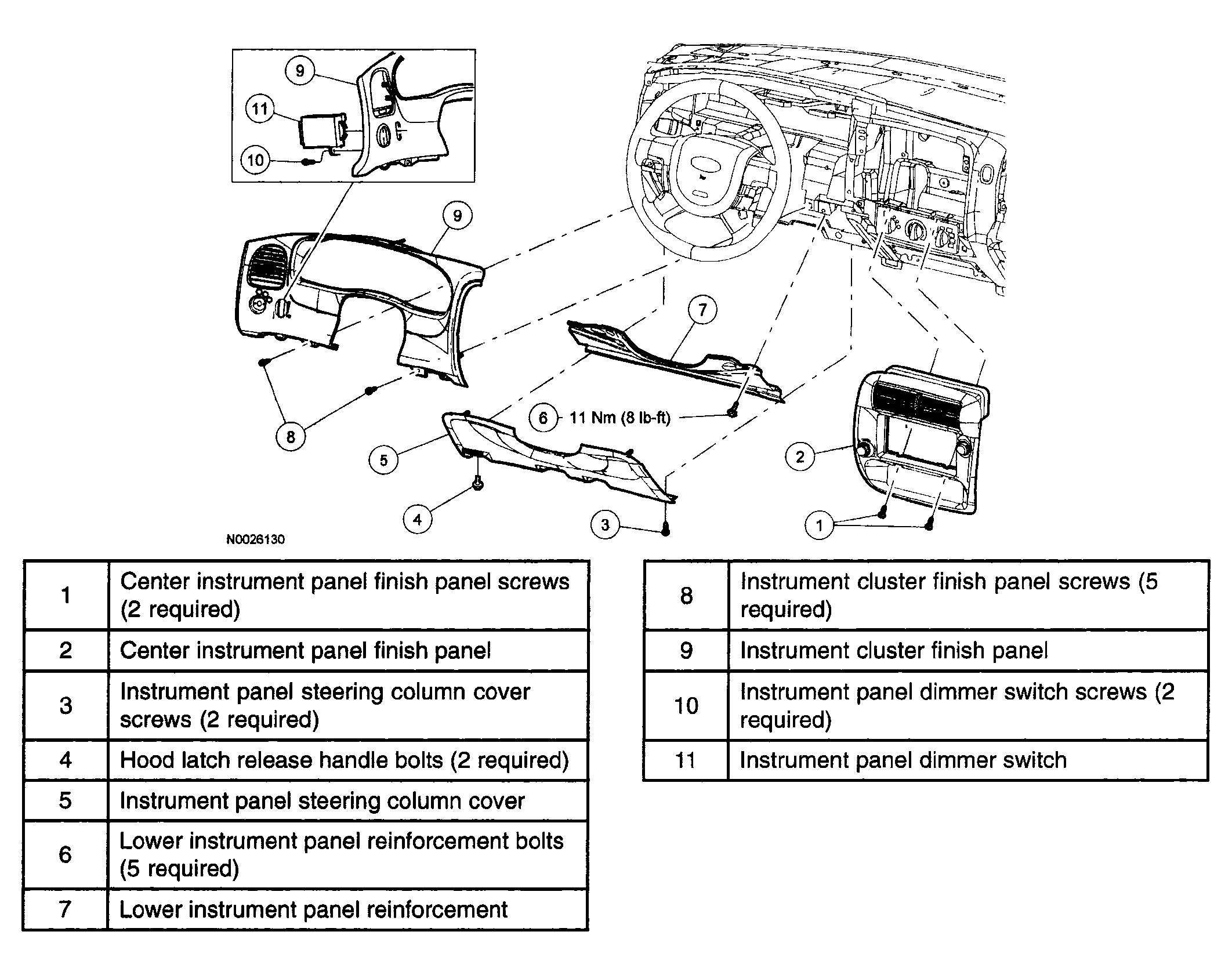

Fig 1: Removing/Installing Instrument Panel Dimmer Switch
G04310529Courtesy of MAZDA MOTORS CORP.
