Disconnecting connectors

When disconnecting two connectors, grasp the connectors, not the wires.

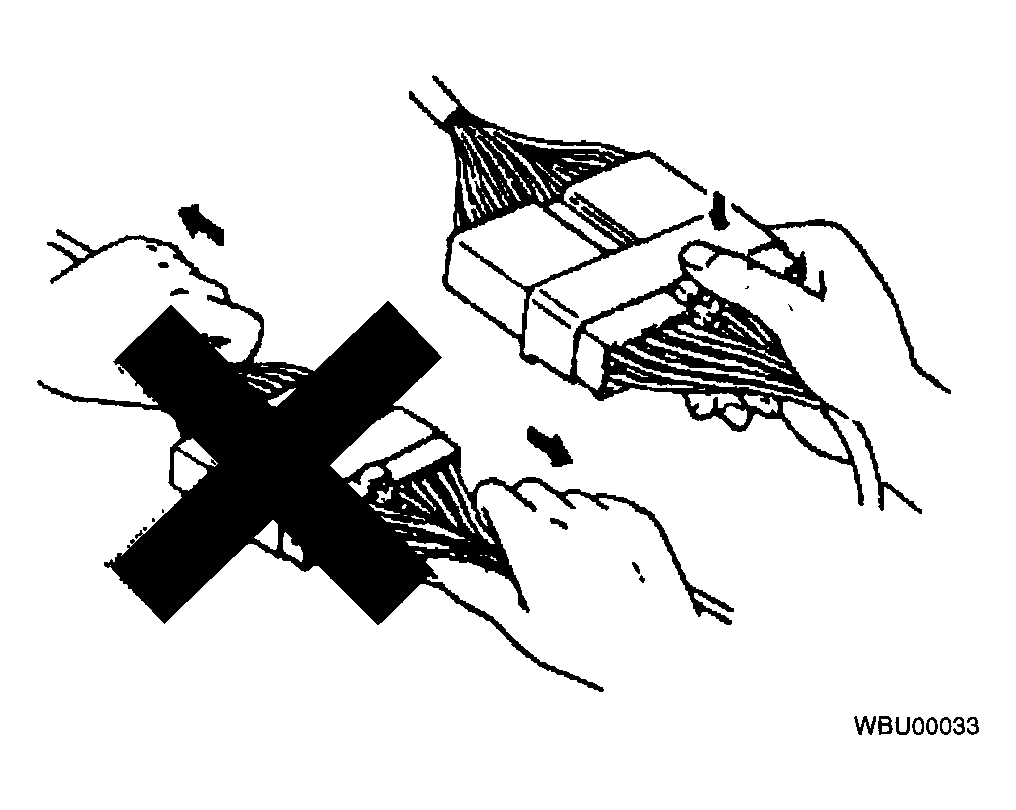

Fig 1: Disconnecting Connectors
G04306873Courtesy of MAZDA MOTORS CORP.

Connectors can be disconnected by pressing or pulling the lock lever as shown.

Fig 2: Pressing Or Pulling Lock Lever
G04306874Courtesy of MAZDA MOTORS CORP.
