Window Adjust Switch Connector End View (C604)

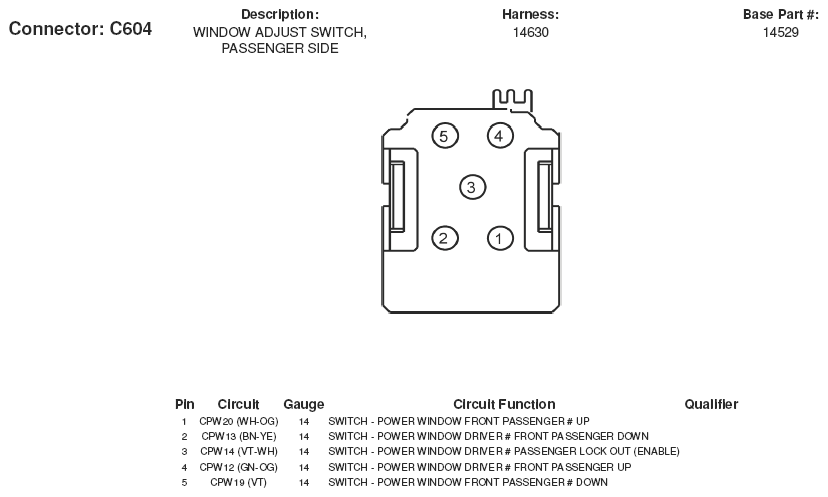

Fig 1: Window Adjust Switch Connector End View (C604)
G05169258Courtesy of FORD MOTOR CO.
