Fog Lamp Connector End View (C152)

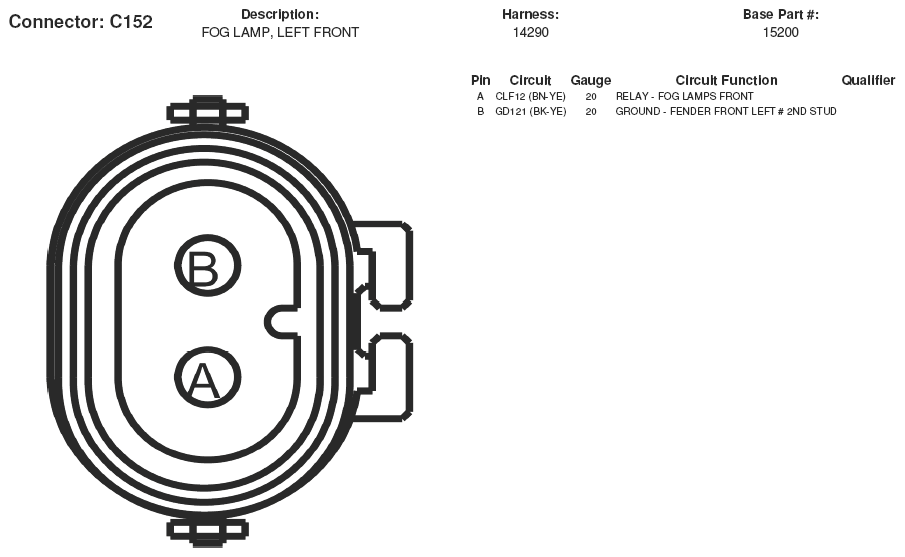

Fig 1: Fog Lamp Connector End View (C152)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
