Antilock Brakes / Traction Control Systems

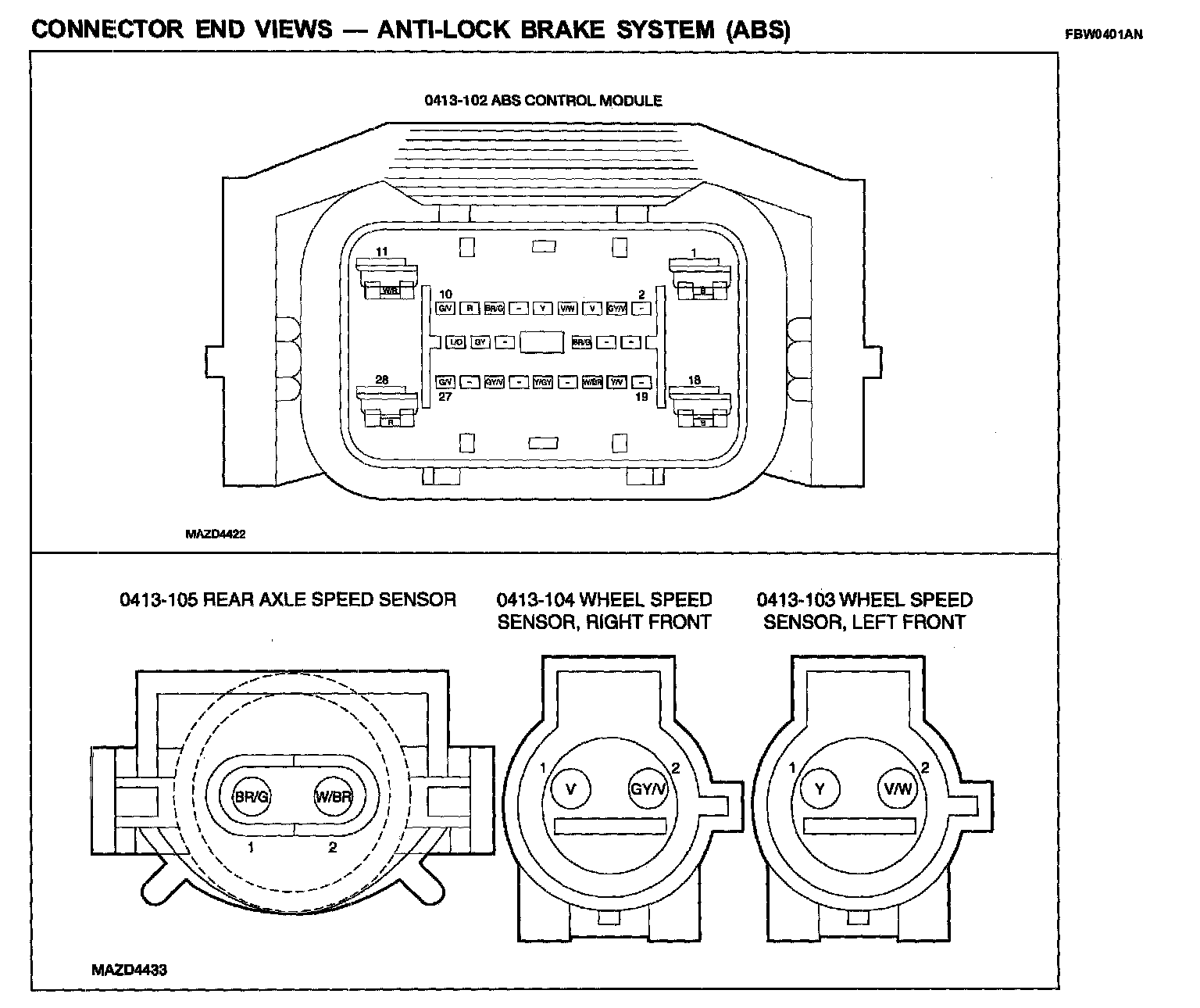

CONNECTOR END VIEWS - ANTI-LOCK BRAKE SYSTEM (ABS) (Part 1):
CONNECTOR END VIEWS - ANTI-LOCK BRAKE SYSTEM (ABS) (Part 2):
