Removal/Installation

GENERATOR REMOVAL/INSTALLATION

WARNING: When the battery cables are connected, touching the vehicle body with generator terminal B generates sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove the drive belt.
4. Remove the TWC (RH) and the front pipe.

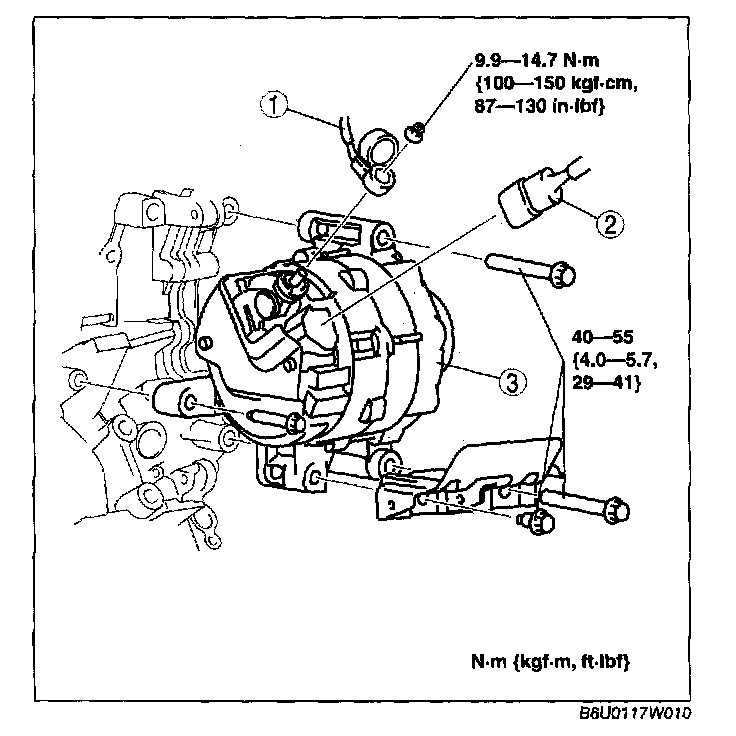

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
