Quick Diagnostic Chart

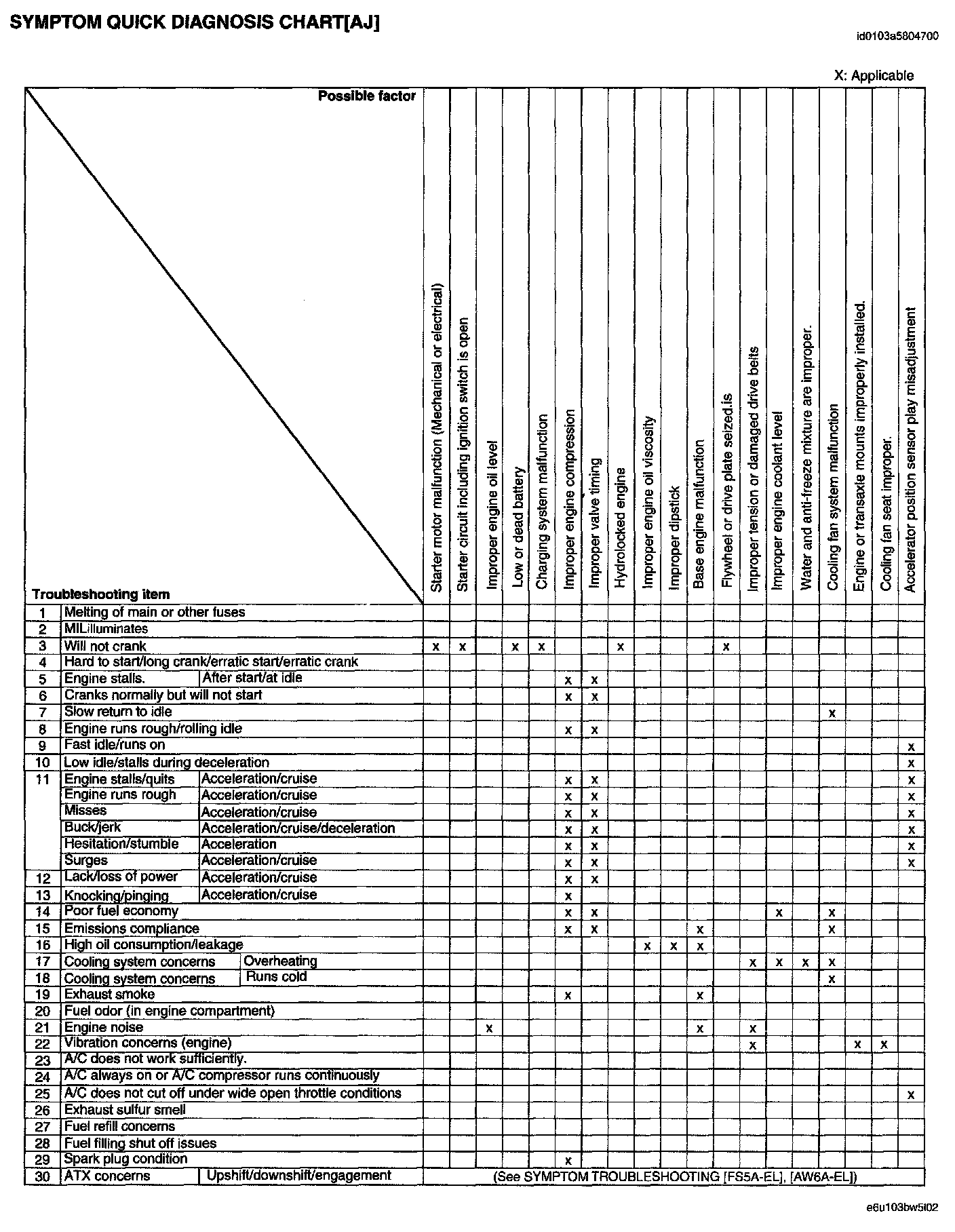

Symptom Quick Diagnosis Chart[AJ] (Part 1):

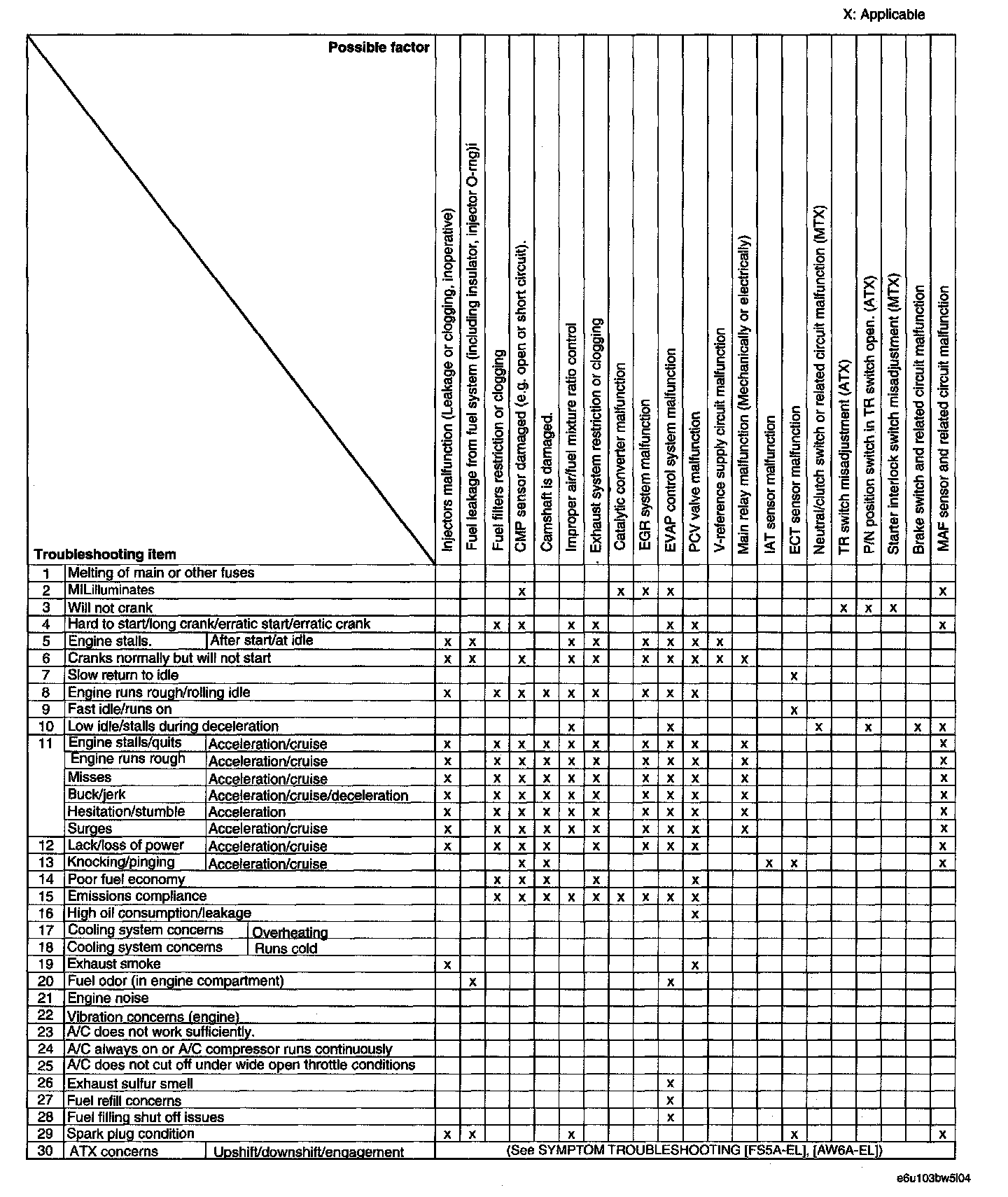

Symptom Quick Diagnosis Chart[AJ] (Part 2):

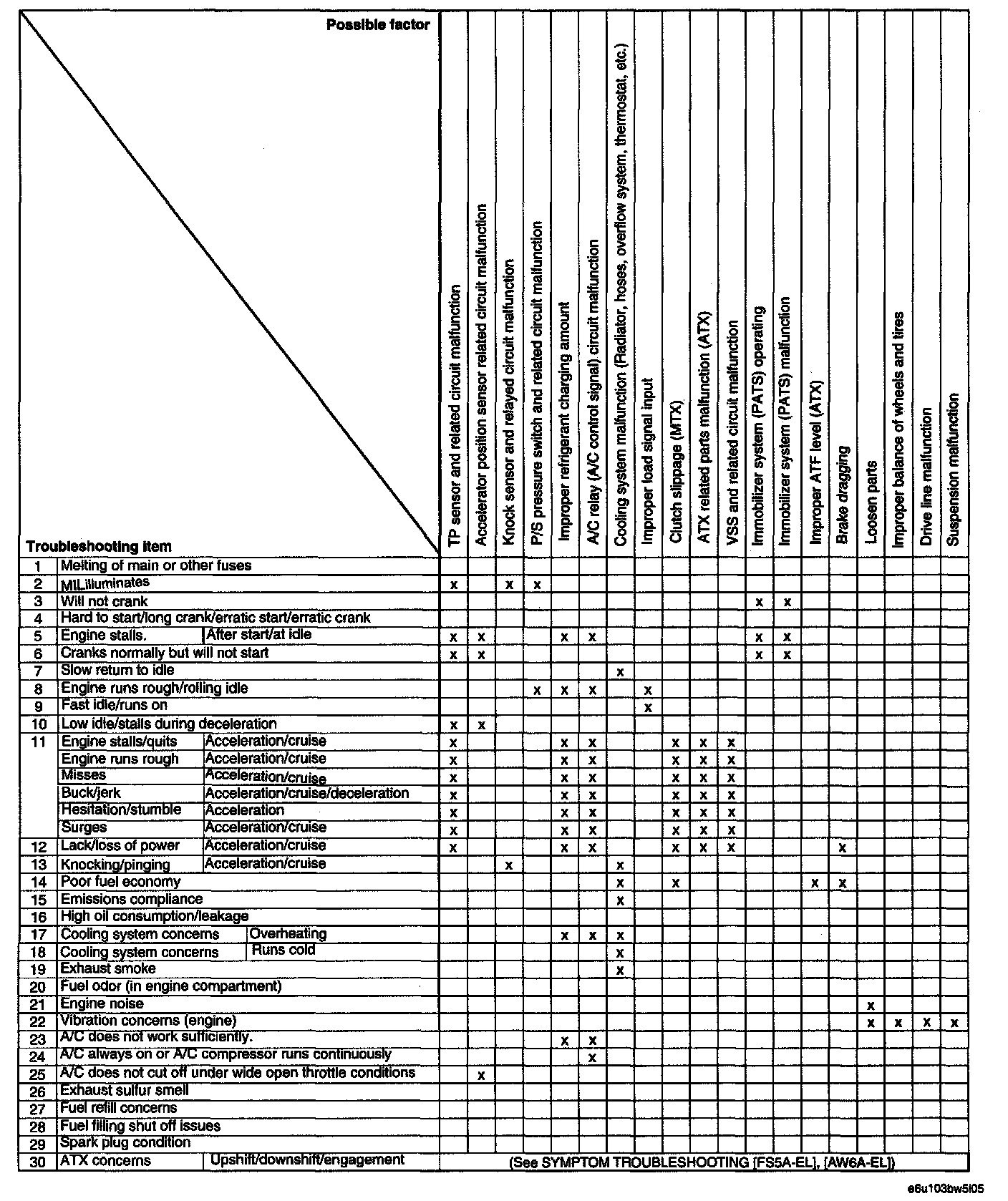

Symptom Quick Diagnosis Chart[AJ] (Part 3):

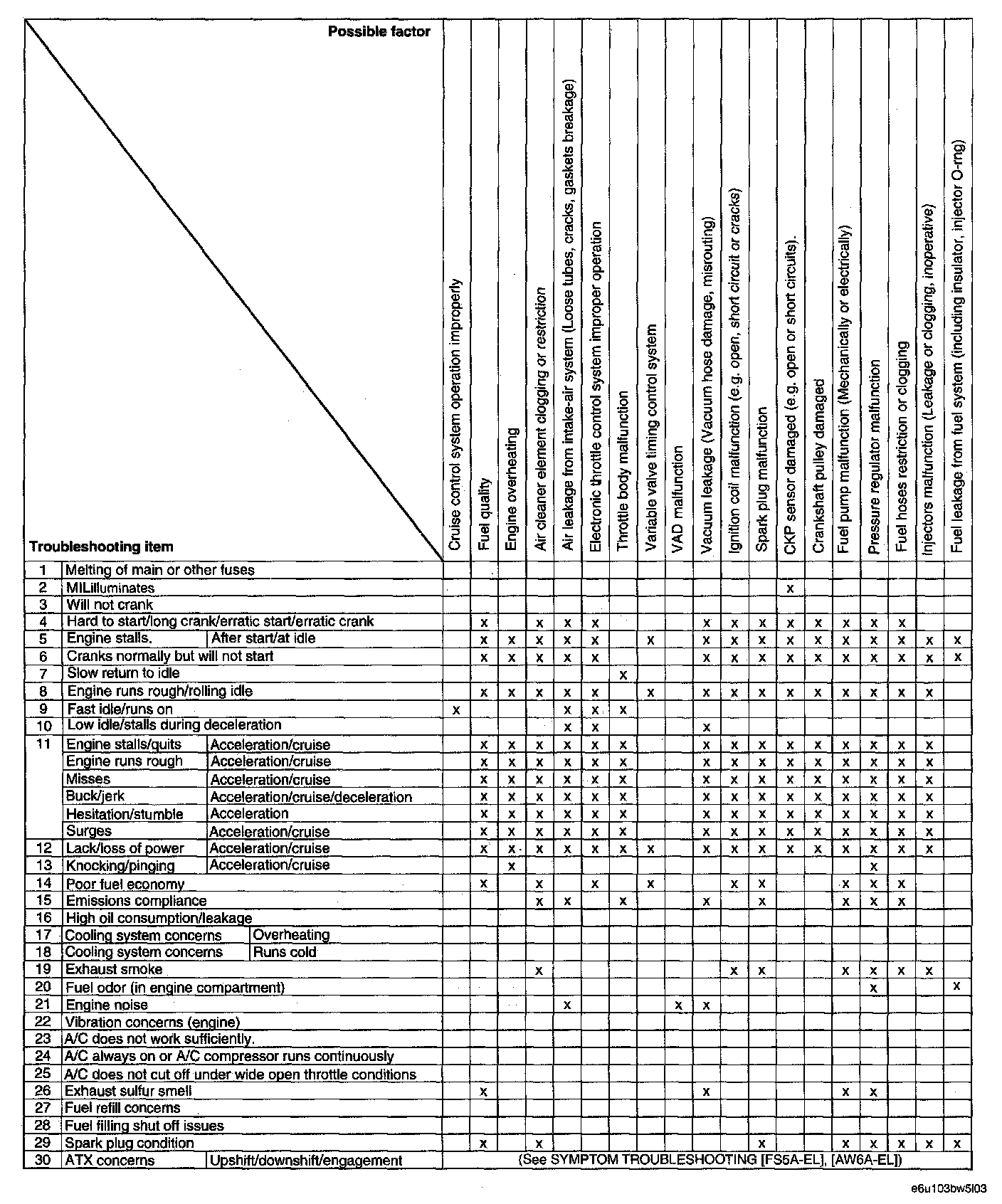

Symptom Quick Diagnosis Chart[AJ] (Part 4):
