Clutch Cover Installation Note

  1. Install the SSTs  .
  2. Tighten the bolts evenly and gradually in a crisscross pattern.

    Tightening torque

    25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

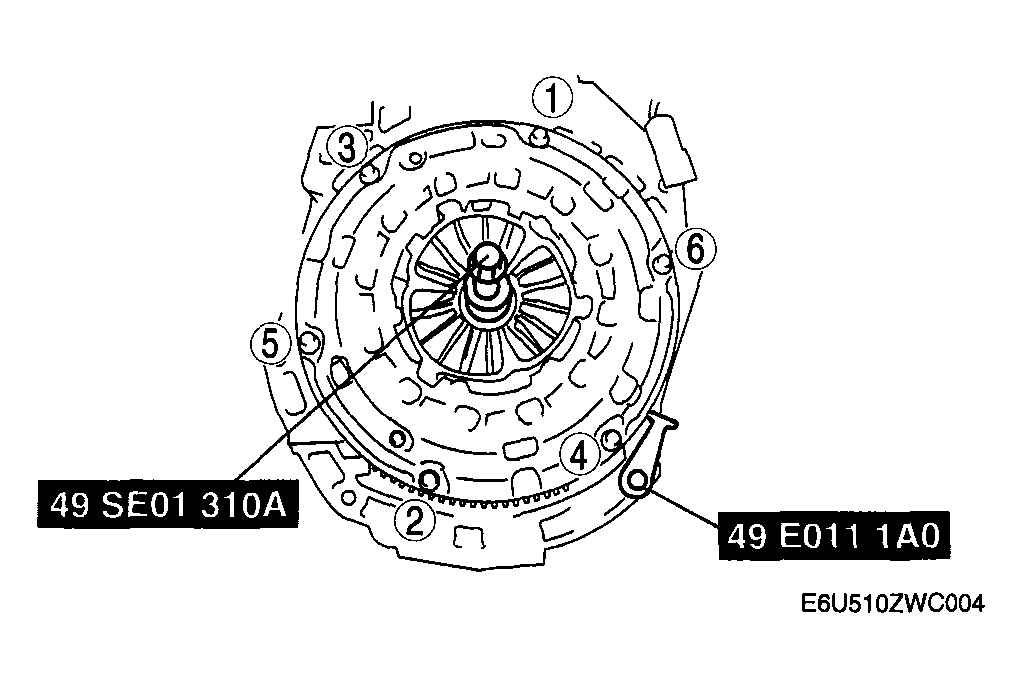

    Fig 1: Clutch Cover Mounting Bolt Tightening Sequence, Alignment Tool & Flywheel Holding Tool
    G04326113Courtesy of MAZDA MOTORS CORP.
