Shift Component Disassembly/Assembly: Notes

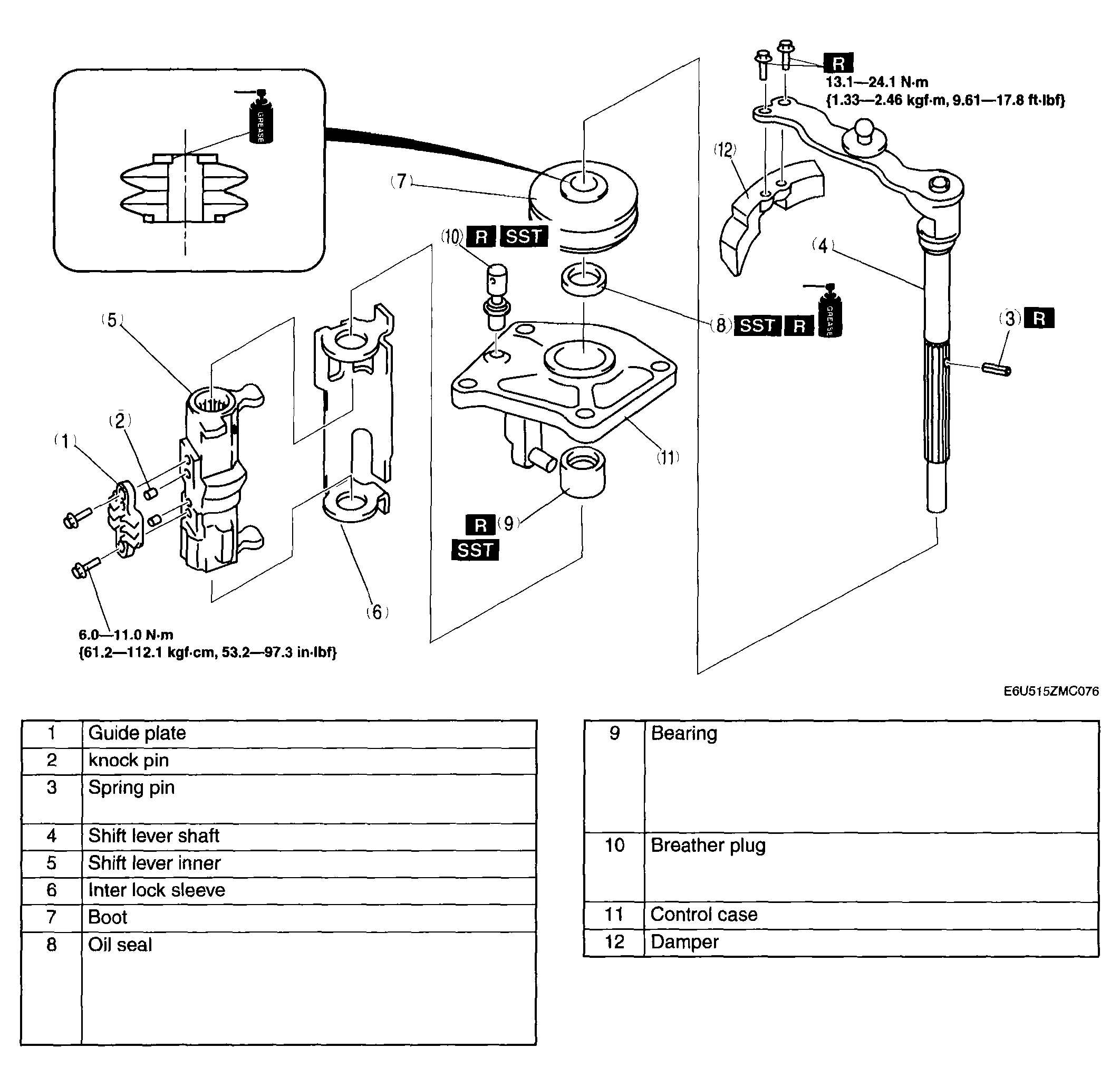

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP.
