Primary Shaft Components Disassembly: Notes

  1. Disassemble in the order shown in the figure.

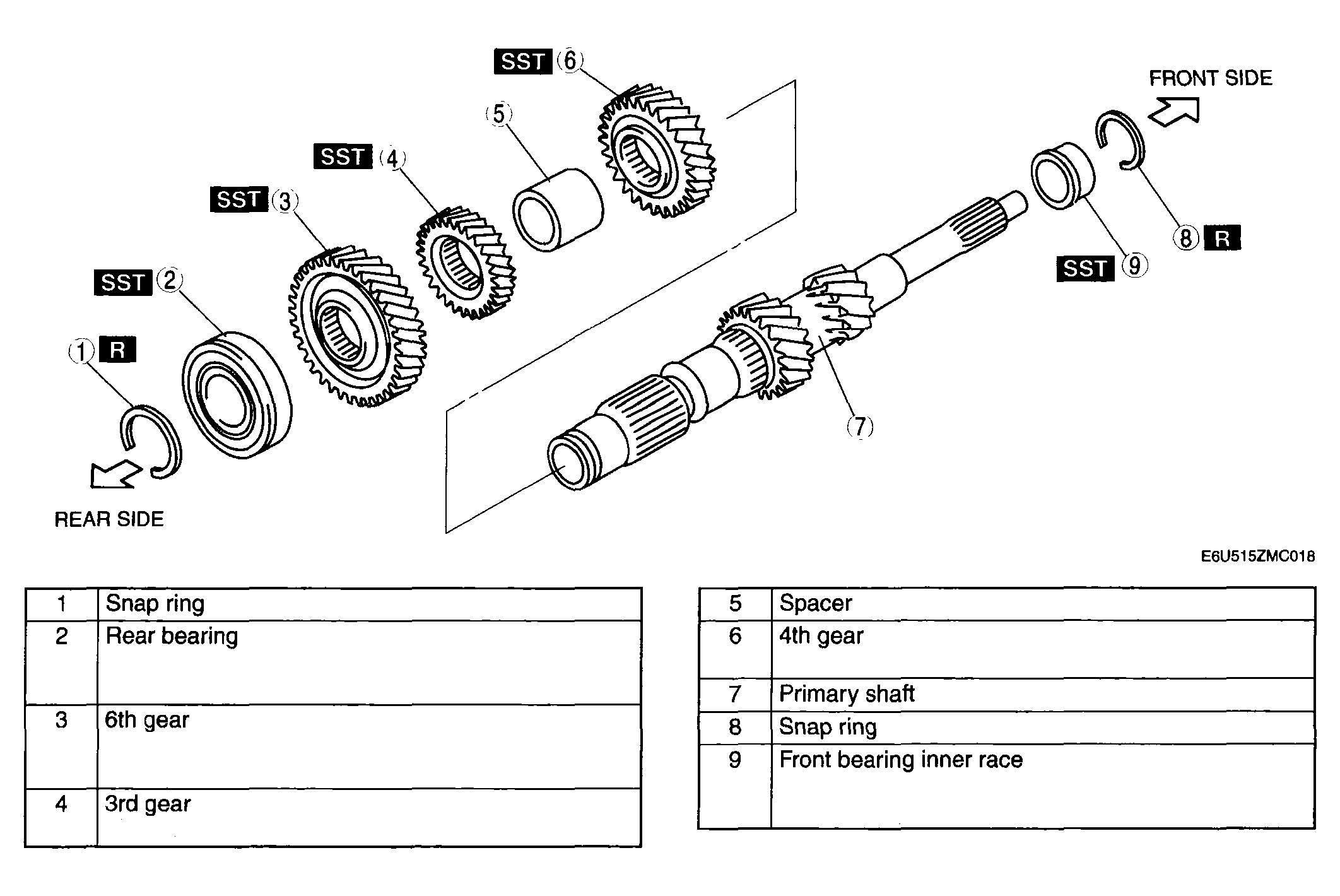

Fig 1: Disassembling View Of Primary Shaft Components
G04330938Courtesy of MAZDA MOTORS CORP.
