Ring Gear Assembly Note

  1. Assemble the gear case component and ring gear, and tighten the bolts in a crisscross pattern in a few passes.

    Tightening torque

    99.7-112.3 N.m

    {10.2-11.4 kgf.m, 73.6-82.8 ft.lbf}

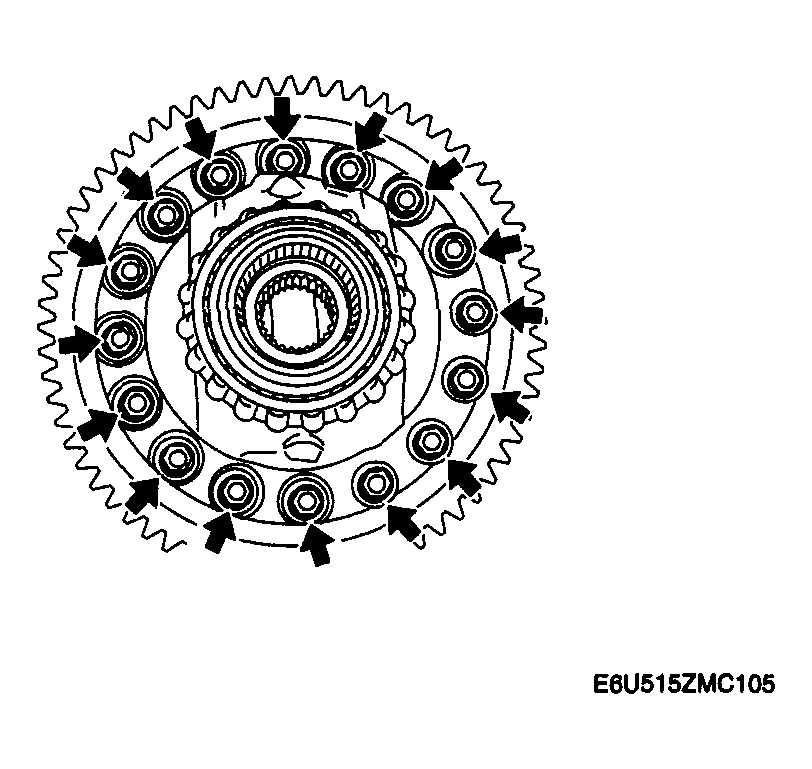

Fig 1: Identifying Ring Gear Bolts
G04331010Courtesy of MAZDA MOTORS CORP.
