A65M-R manual transaxle models

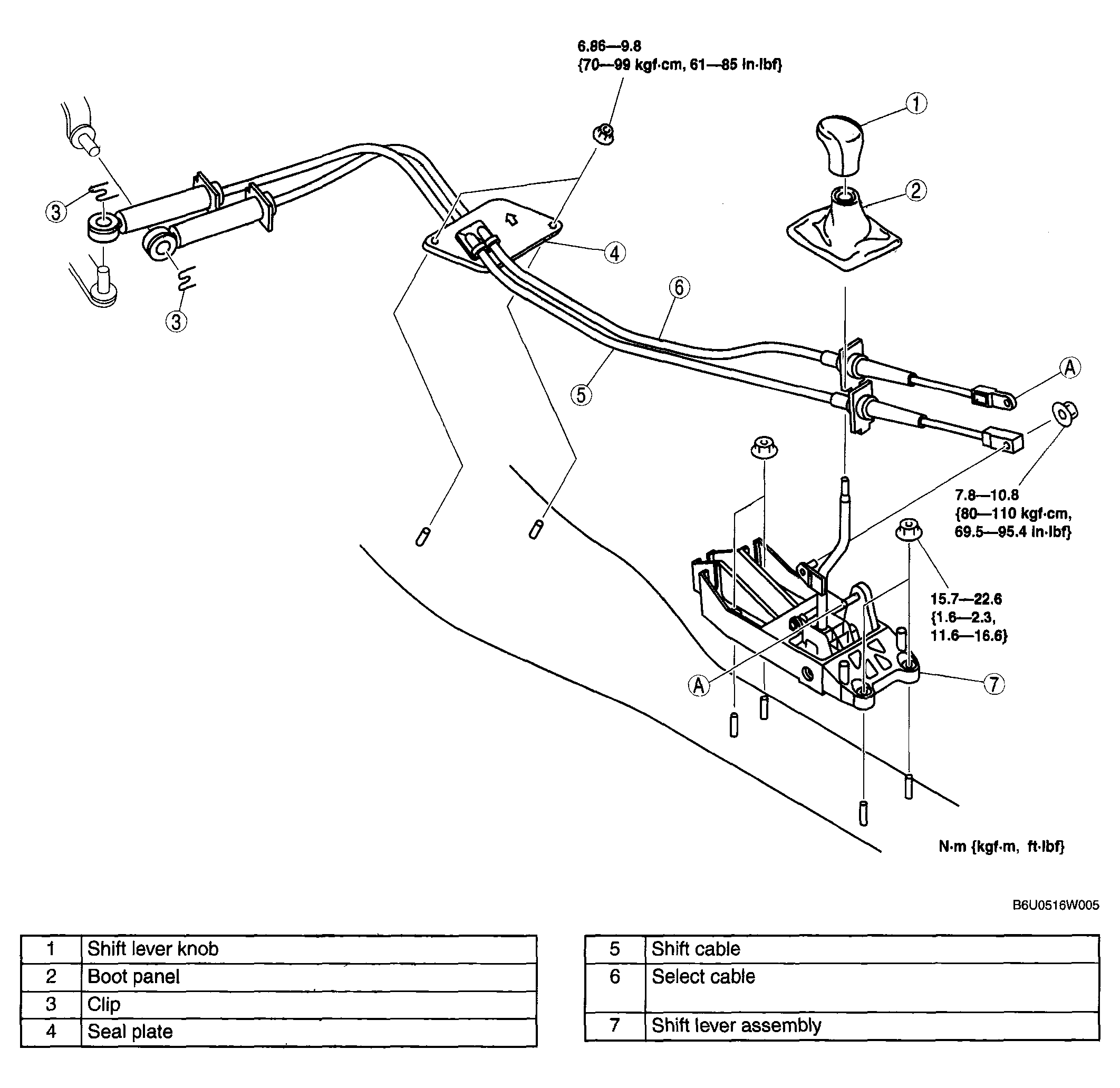

Fig 1: Removal/Installation Of Shift Mechanism & Torque Specification (A65M-R)
G04326196Courtesy of MAZDA MOTORS CORP.
