Manual Transaxle Installation Note

  1. Set the transaxle on a jack and lift into place.
  2. Install the transaxle mounting bolts.

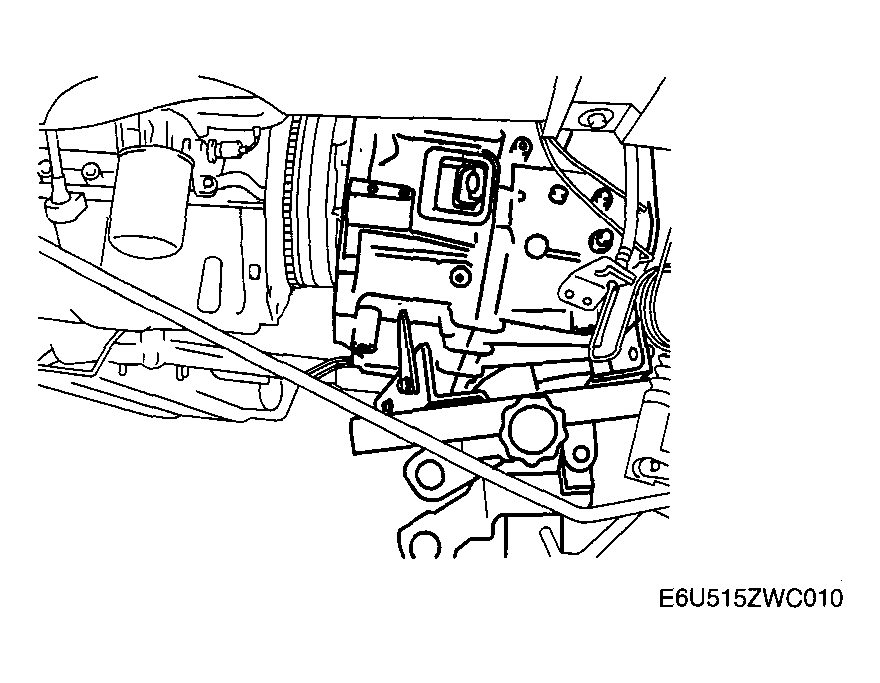

    Fig 1: Lifting Transaxle Into Place
    G04326189Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolt shown in the figure.

    Tightening torque

    18.5-25.5 N.m {1.89-2.60 kgf.m, 13.7-18.8 ft.lbf}

    Fig 2: Brake Line Bracket Bolt
    G04326190Courtesy of MAZDA MOTORS CORP.
