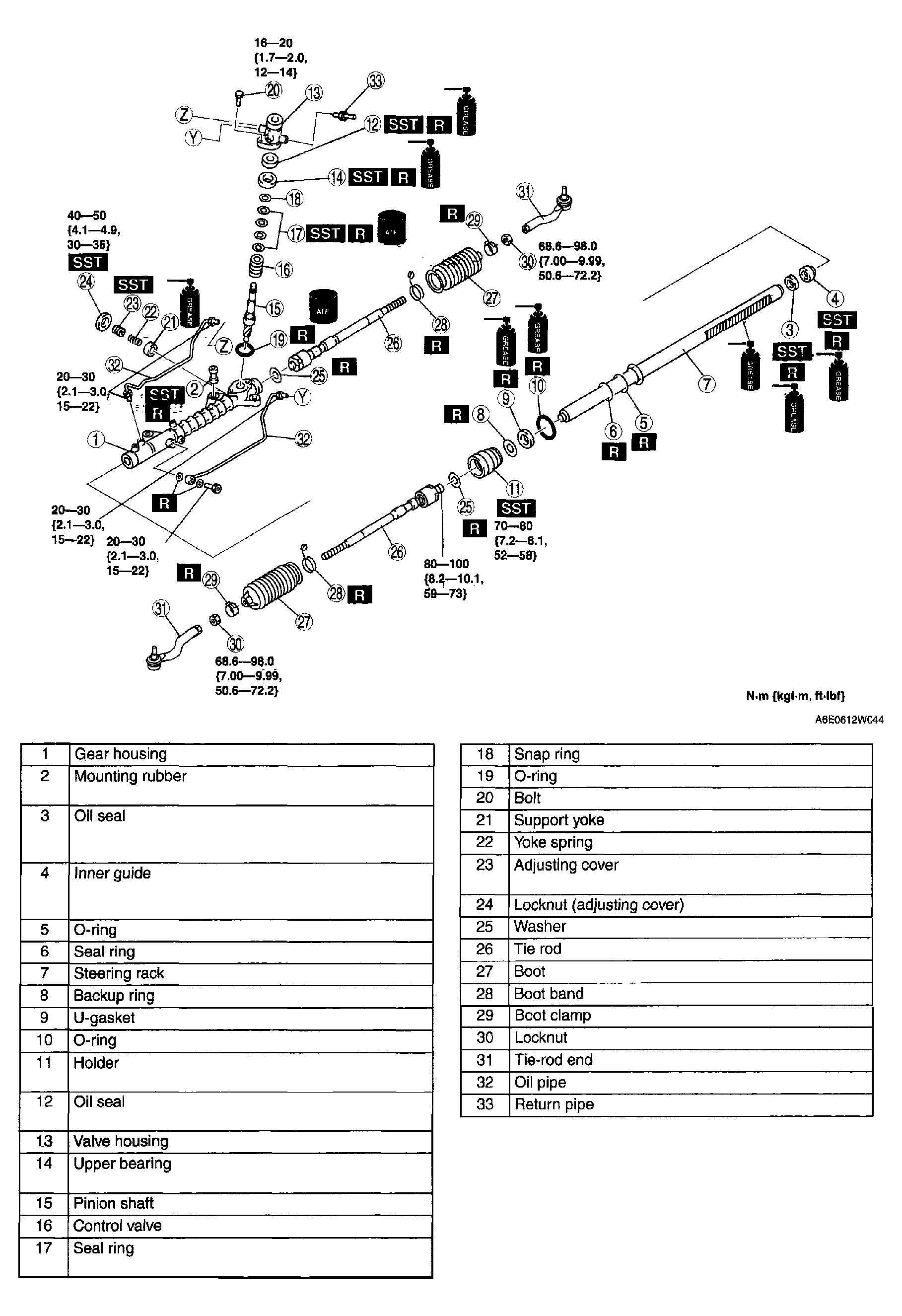

Steering Gear And Linkage Assembly: Notes
CAUTION:
- Place copper plates, rag, or similar material in a vise, when secure the mounting bracket portion of the steering gear.
- Assemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
