DTC B2867: Notes
DTC B2867 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC B2867 |

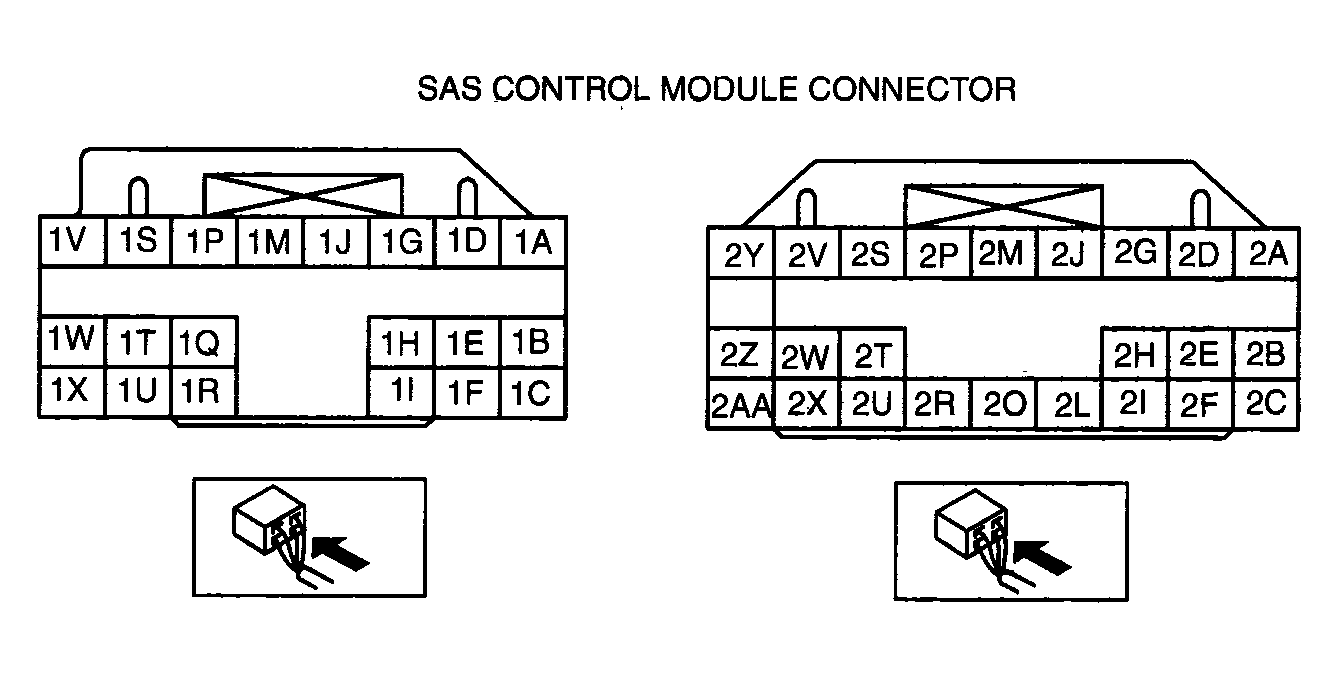

SAS control module connector poor connection |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding DTC outline before performing inspection. Performing inspection with only detection conditions may cause injury due to operating error or damage the system. When performing inspection, always follow inspection procedure.
- There is no continuity between poor connection detector bar terminals of SAS control module.
|
| POSSIBLE CAUSE |
- Poor connection of any SAS control module connectors
- Malfunction of any SAS control module connectors
- SAS control module malfunction
|
|
|
