Rear Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, pump the brake pedal a few times and inspect the following:
    • Parking brake lever stroke
    • Brake drag

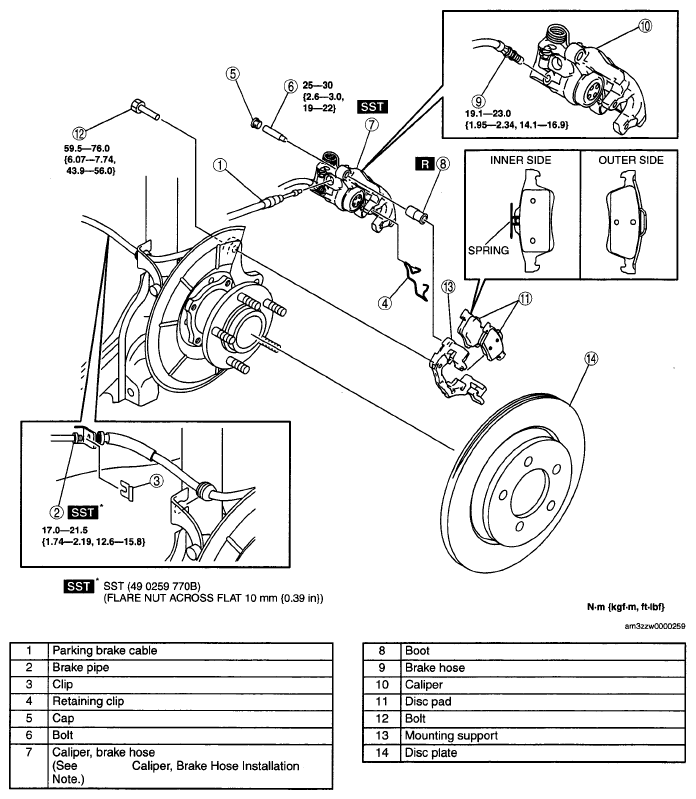

      Fig 1: Rear Brake Replacement Components With Torque Specifications (Disc)
      G04955698Courtesy of MAZDA MOTORS CORP.
