Power Door Lock System And Keyless Entry System Location Index[Keyless Entry System]
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

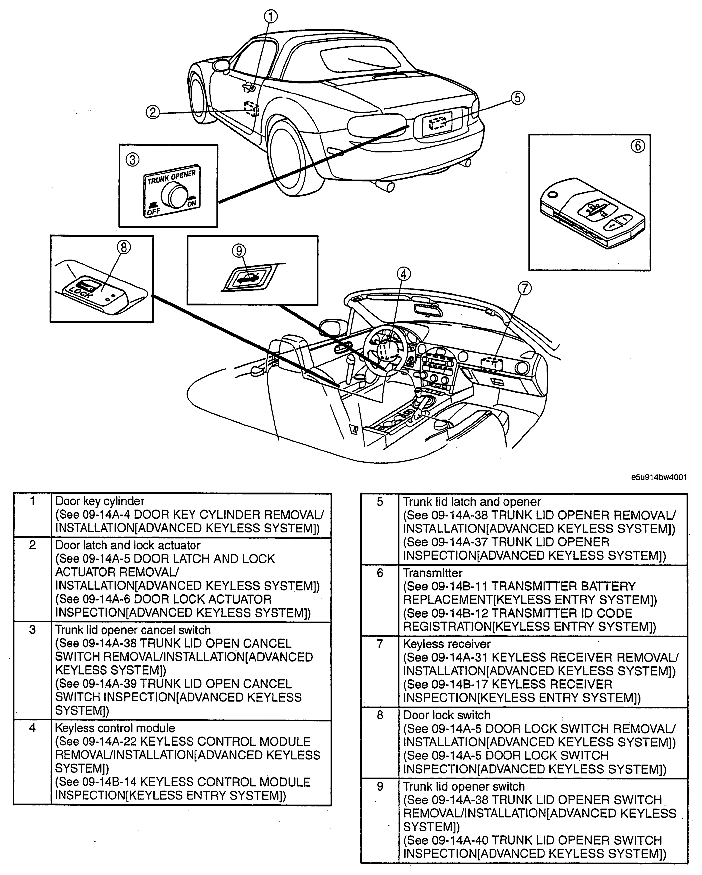

Fig 1: Identifying Power Door Lock System And Keyless Entry System Components Location
