Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Removing/installing the shock absorber and coil spring is dangerous. The shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.
  1. Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION  .)
  2. Remove in the order indicated in Fig 1 .
  3. Install in the reverse order of removal.

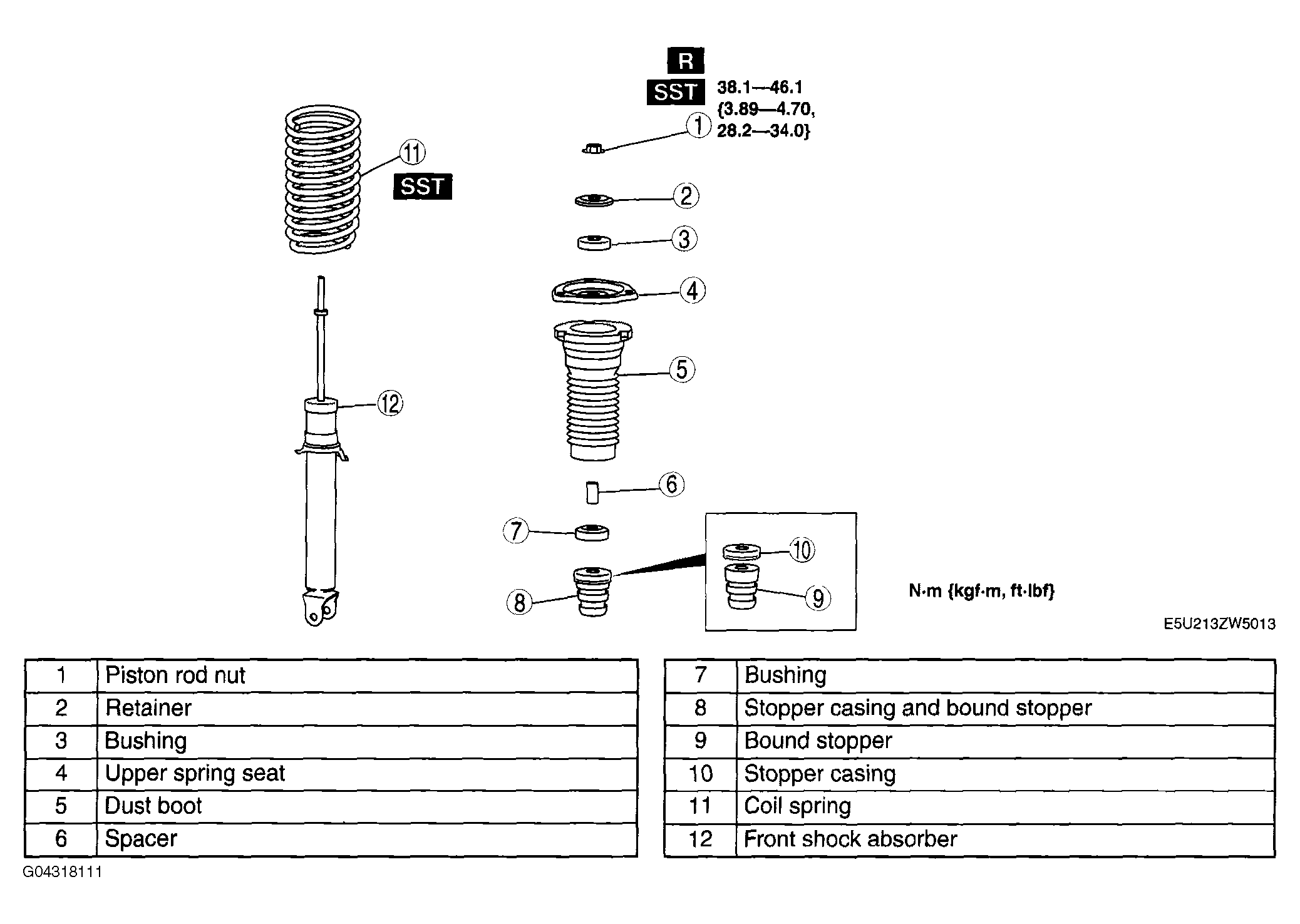

    Fig 1: Disassembling/Assembling Front Shock Absorber And Coil Spring With Torque Specifications
    G04318111Courtesy of MAZDA MOTORS CORP.
