Front Crossmember Component Removal Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Secure the chain to install the SST to the position shown in Fig 1 using the bolts (M10 x 1.5 , length 30 mm {1.18 in} ).

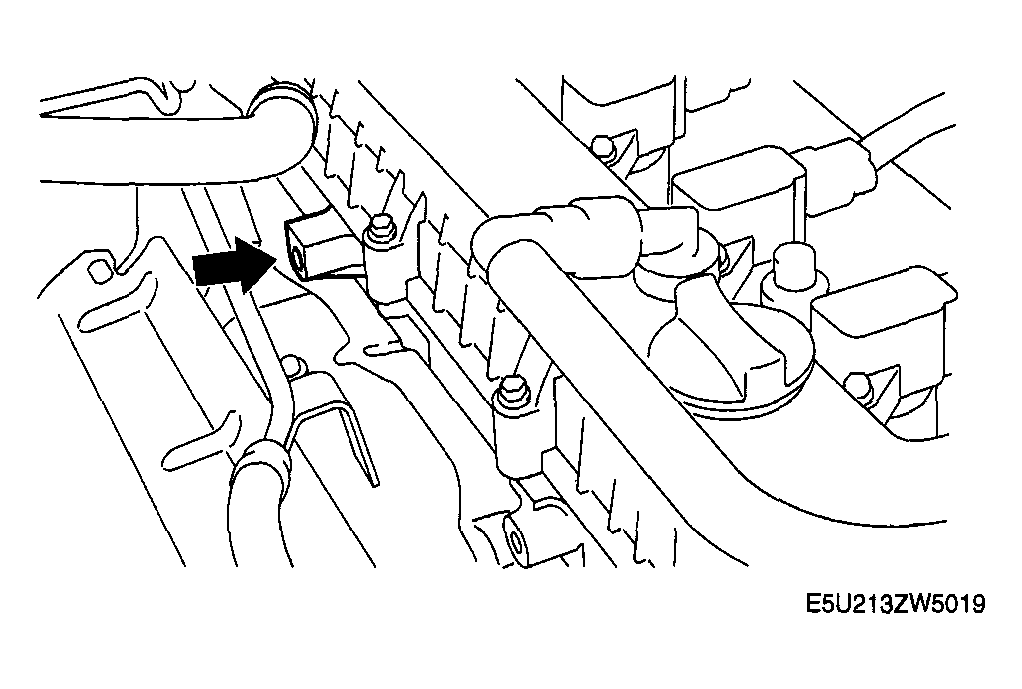

Fig 1: Identifying Chain Bolt Location
Courtesy of MAZDA MOTORS CORP.
Suspend the engine.

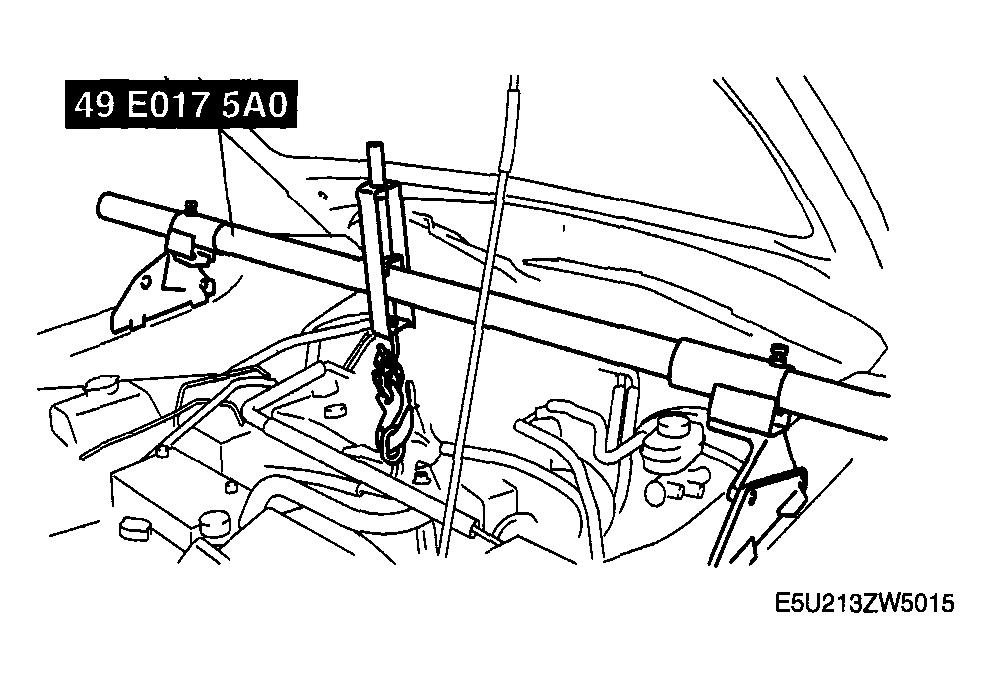

Fig 2: Suspending Engine
Courtesy of MAZDA MOTORS CORP.
Support the front crossmember using a jack.
WARNING:
- Verify that the crossmember component is securely supported by a jack. If the crossmember component falls, it could cause serious injury or death, or damage to the vehicle.
Lower the front crossmember component slightly.
Remove the engine mounting rubber, pipes and hoses installed to the front crossmember.
Remove the front crossmember component.

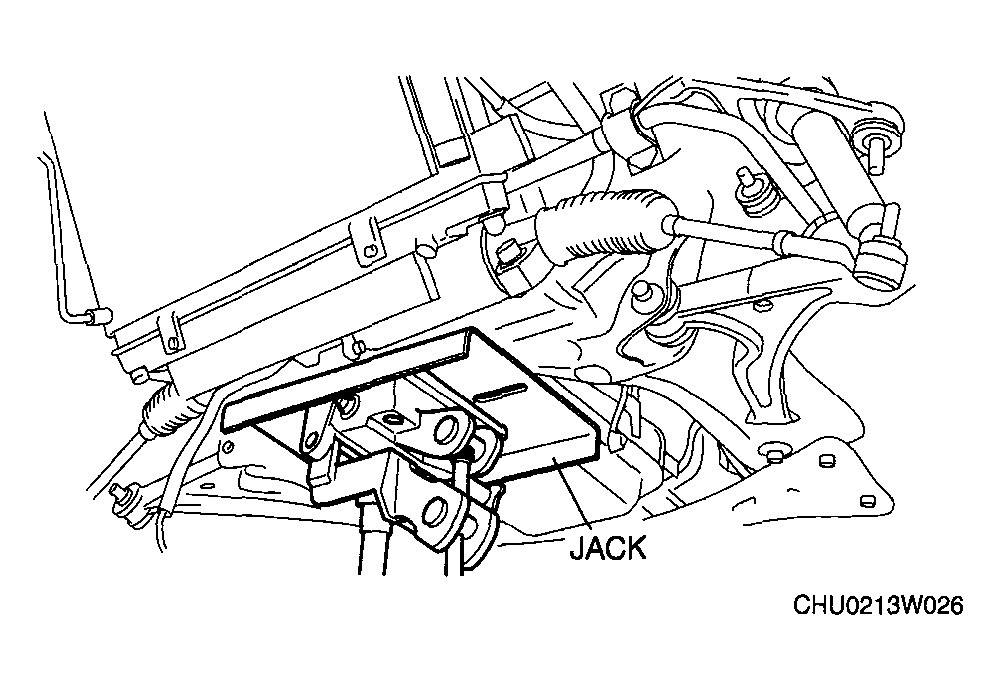

Fig 3: Supporting Front Crossmember Using Jack
Courtesy of MAZDA MOTORS CORP.
