Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION .)
  5. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  6. Remove the decoration panel (passenger's side). (See DECORATION PANEL REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in Fig 1.

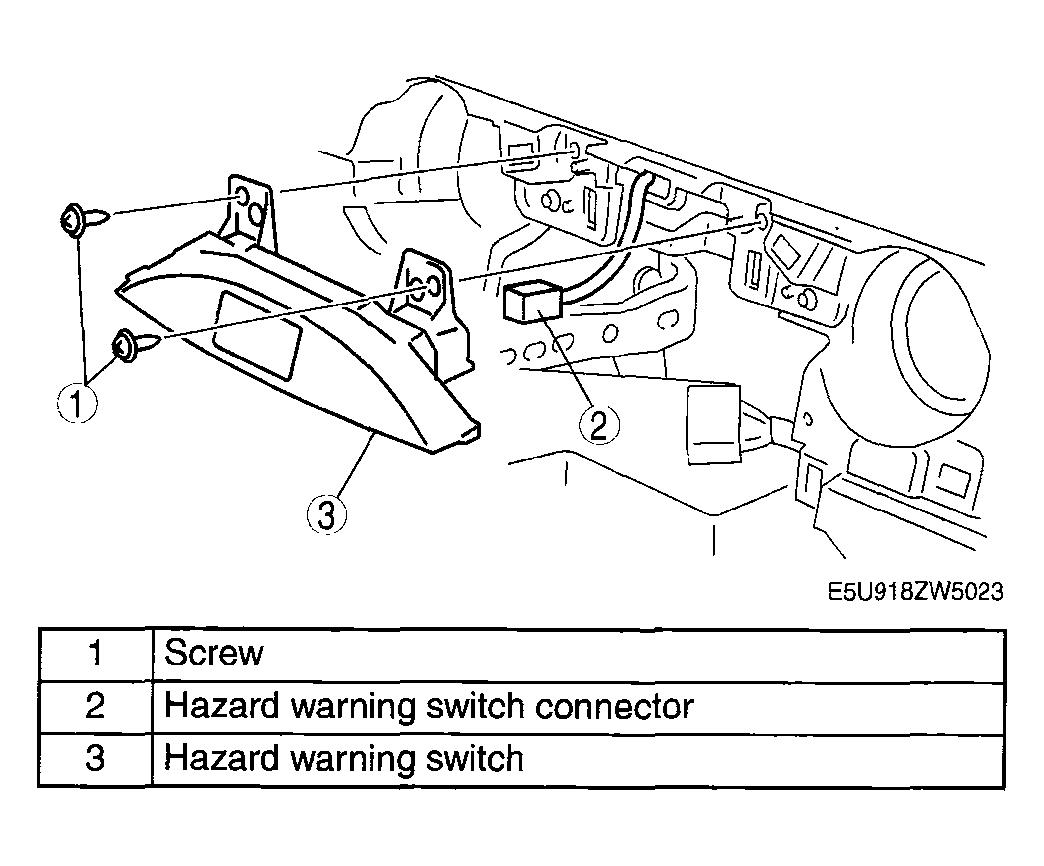

    Fig 1: Identifying Hazard Warning Switch
    G04323718Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
