Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery cover.
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
Remove the fasteners.
Slightly bent back the mudguard.

Fig 1: Identifying Fasteners
Courtesy of MAZDA MOTORS CORP.
Disconnect the front fog light connector.
Remove the bolt, then remove the front fog light.
Install in the reverse order of removal.
Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)

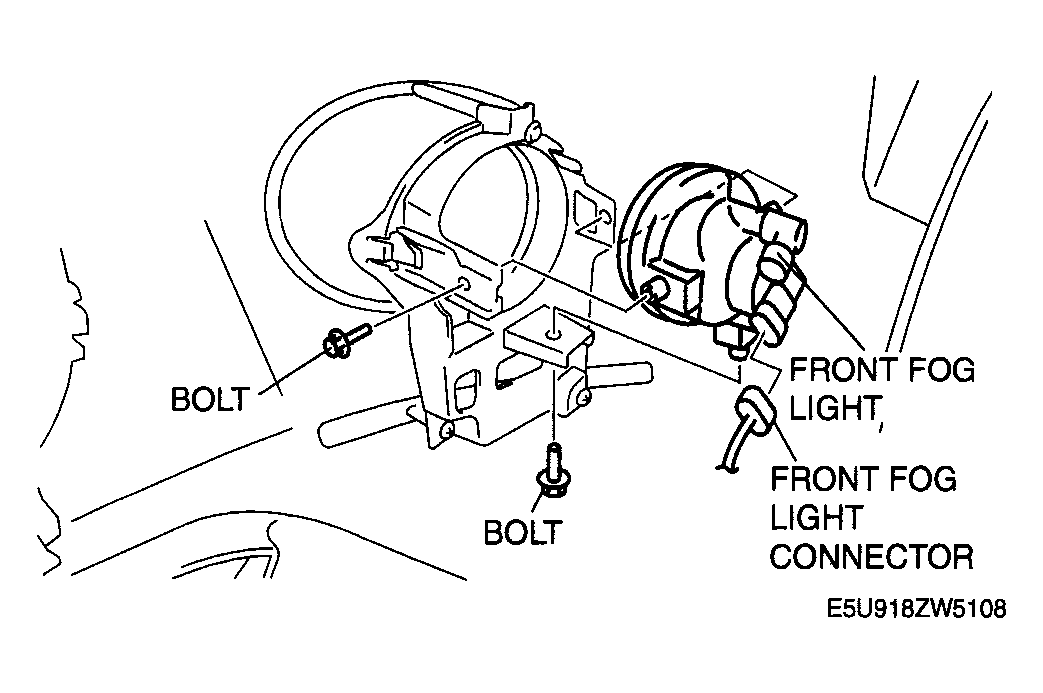

Fig 2: Identifying Front Fog Light
Courtesy of MAZDA MOTORS CORP.
