Fuel Pump Unit Disassembly/Assembly

WARNING:
  • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, do not damage the sealing surface of the fuel pump unit when removing or installing.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

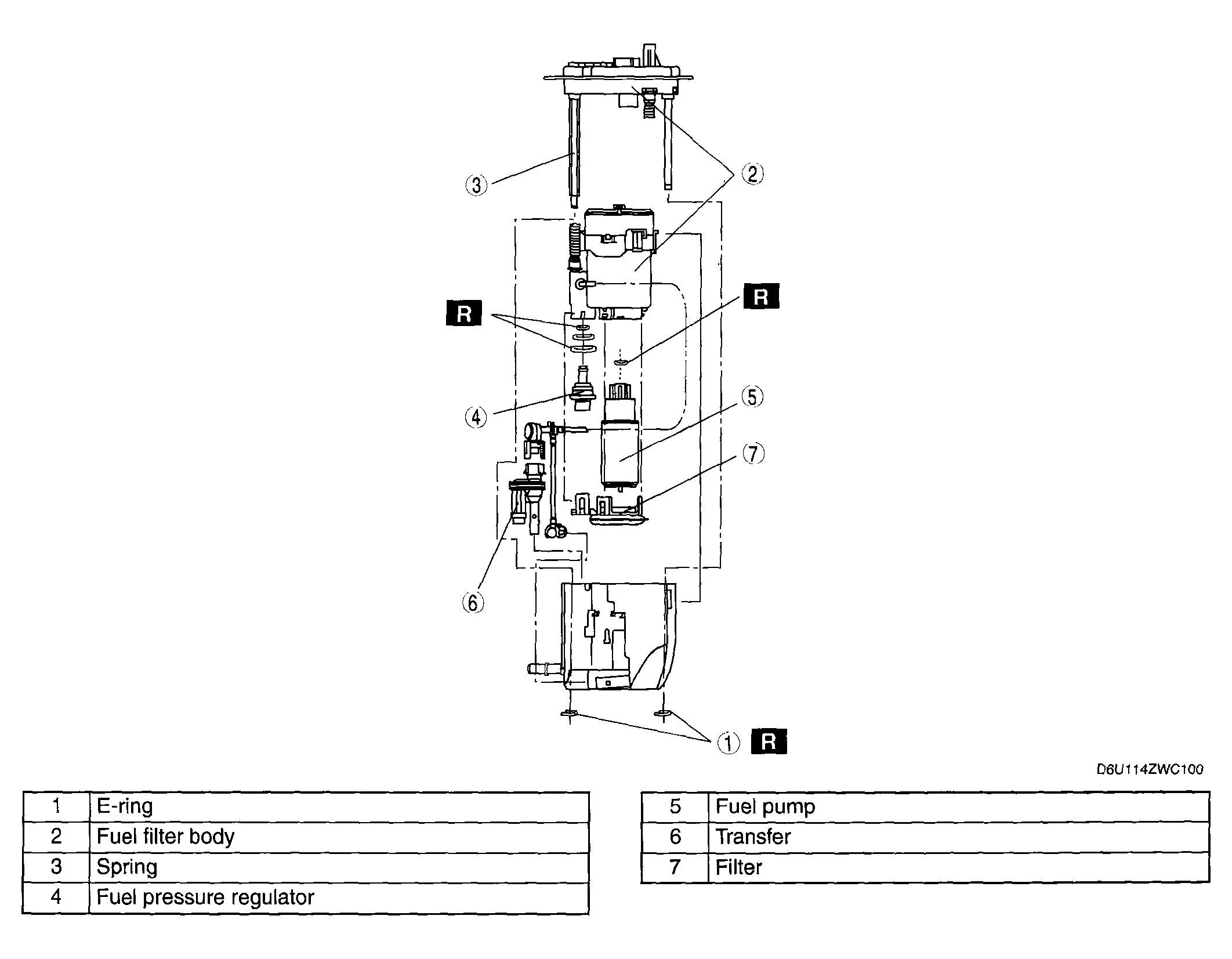

    Fig 1: Identifying Disassemble Order Of Fuel Pump Unit
    G04324875Courtesy of MAZDA MOTORS CORP.
