Power Window Subswitch

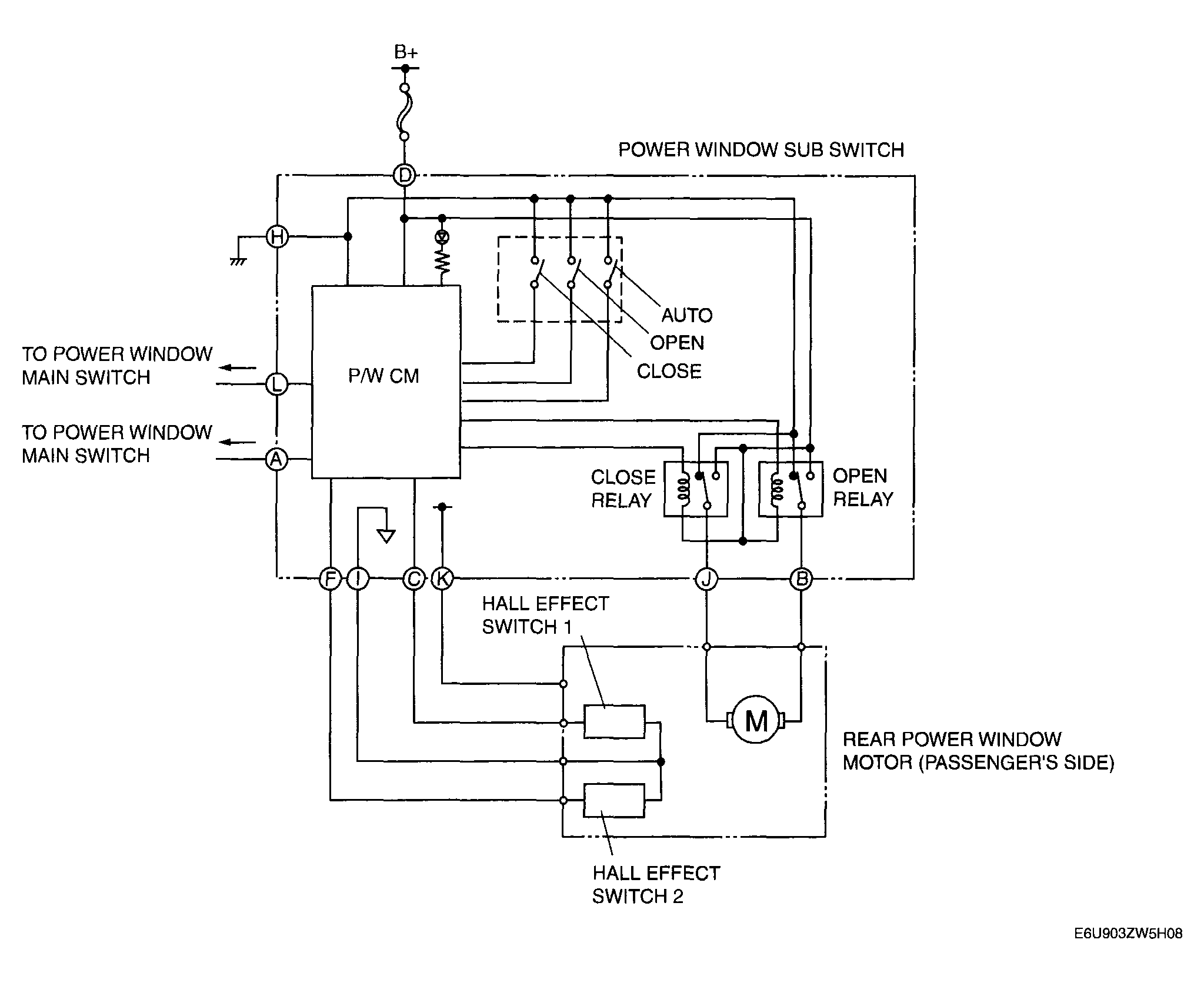

Fig 1: Power Window Subswitch - Wiring Diagram
G04327083Courtesy of MAZDA MOTORS CORP.
