Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals.
- If there is any malfunction, replace the power window main switch.

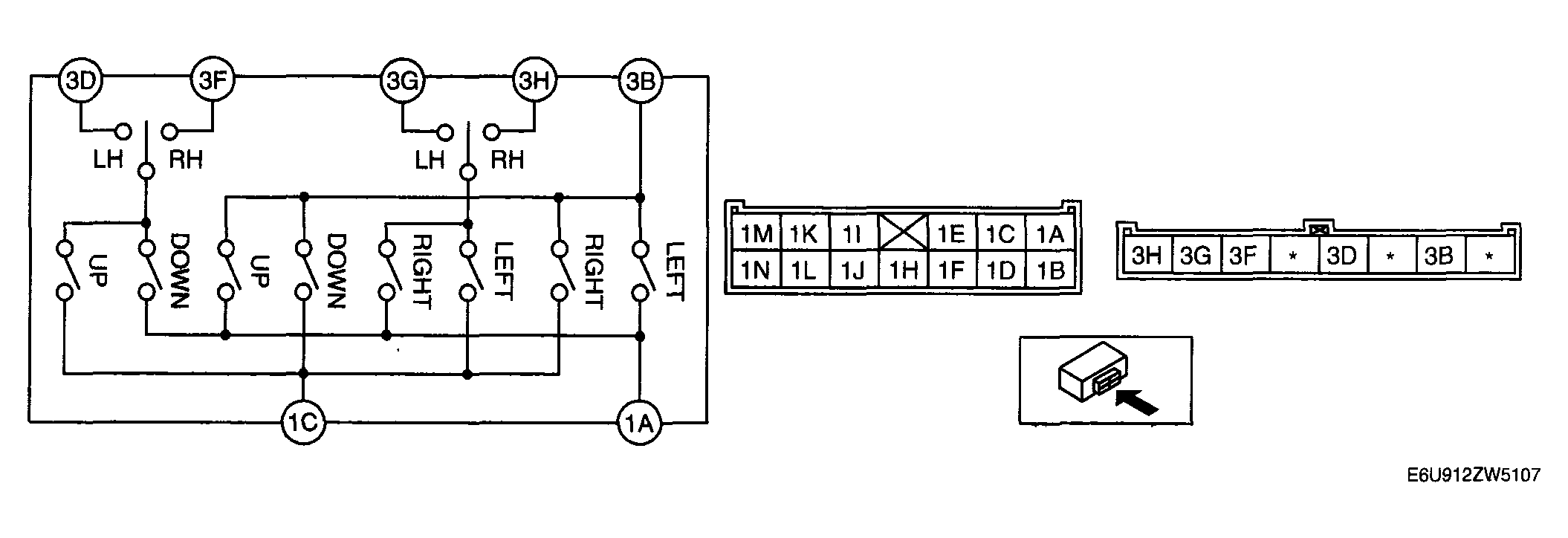

  Fig 1: Inspecting Continuity Between Power Outer Mirror Switch Terminals
  Courtesy of MAZDA MOTORS CORP.

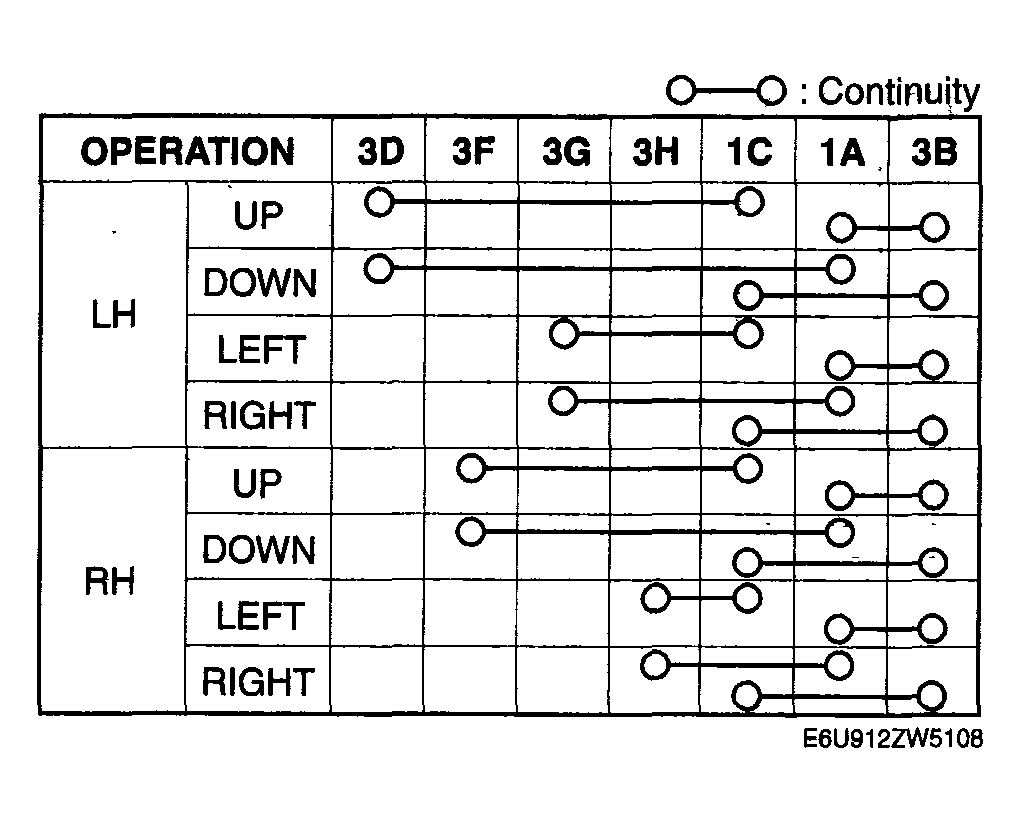

  Fig 2: Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.
