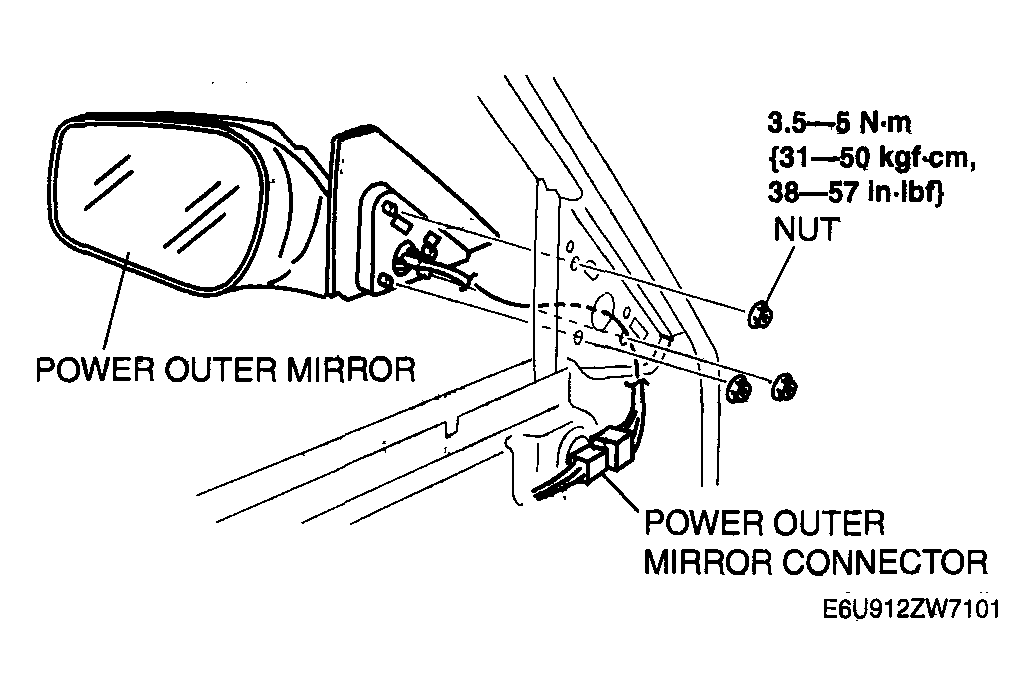

Power Outer Mirror Removal/Installation
- Disconnect the negative battery cable.
- Remove the inner garnish.
- Remove the front door trim. See
FRONT DOOR TRIM REMOVAL/INSTALLATION
)
- Disconnect the power outer mirror connector.
- Remove the nuts.
- Remove the power outer mirror.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
