Trunk Lid Open Cancel Switch Removal/Installation
- Disconnect the negative battery cable.
- Remove the glove compartment.

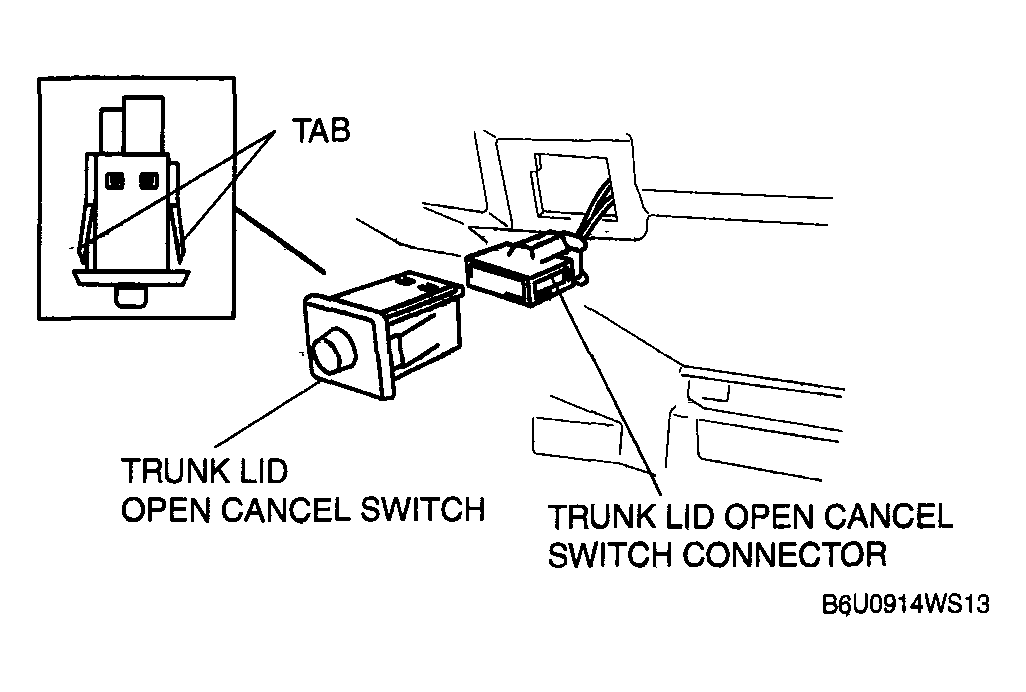

- Squeeze the tabs of the trunk lid open cancel switch and pull it forward to remove it.
- Disconnect the trunk lid open cancel switch connector.
- Remove the trunk lid open cancel switch.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
