[AW6A-EL]

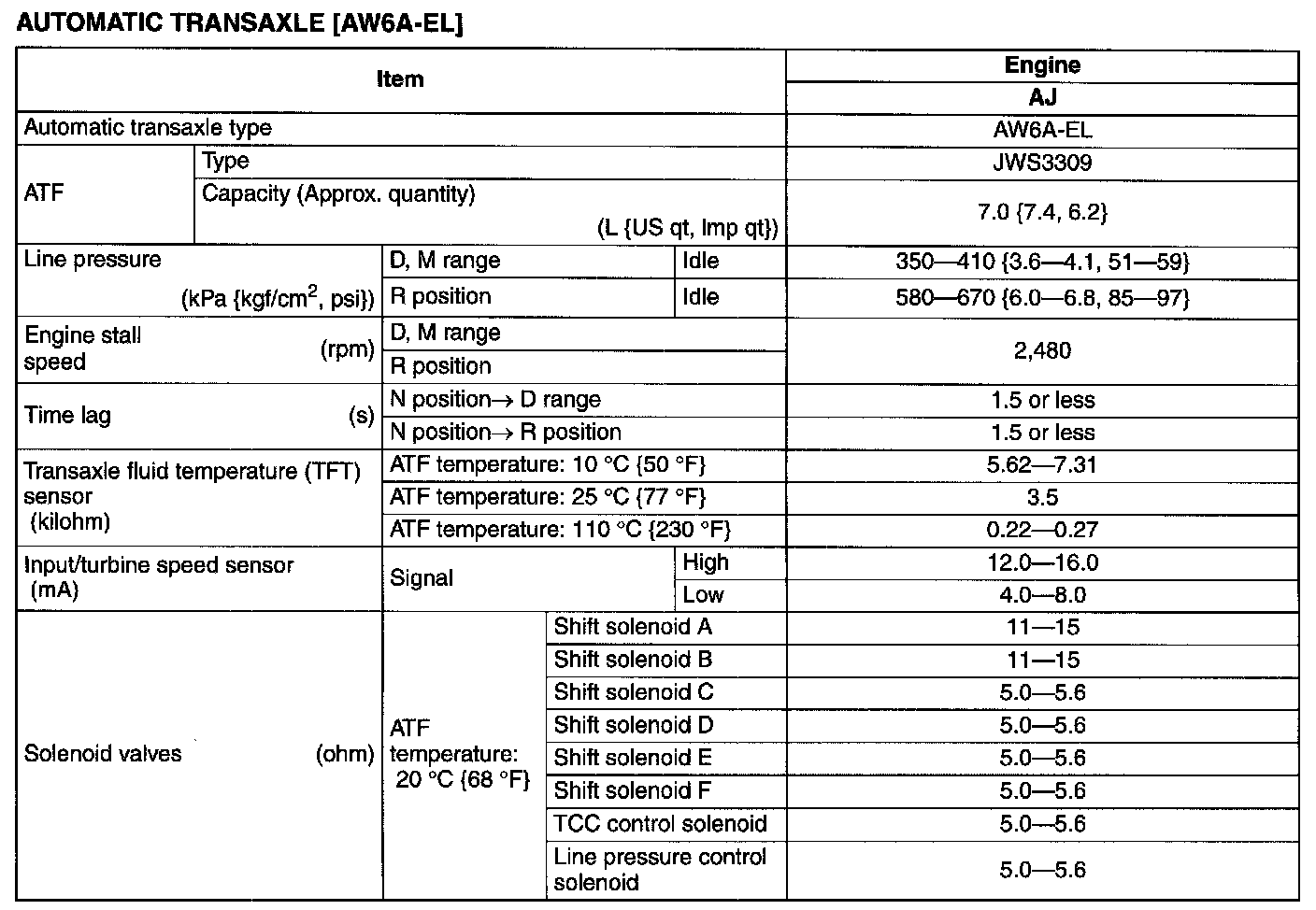

AUTOMATIC TRANSAXLE [AW6A-EL]

Automatic Transaxle (AW6A-EL):





Drive Plate





Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque 73 - 87 N-m (7.4 - 8.9 kgf-m, 54 - 64 ft-lbf)
