Evaporative Emissions System: Locations

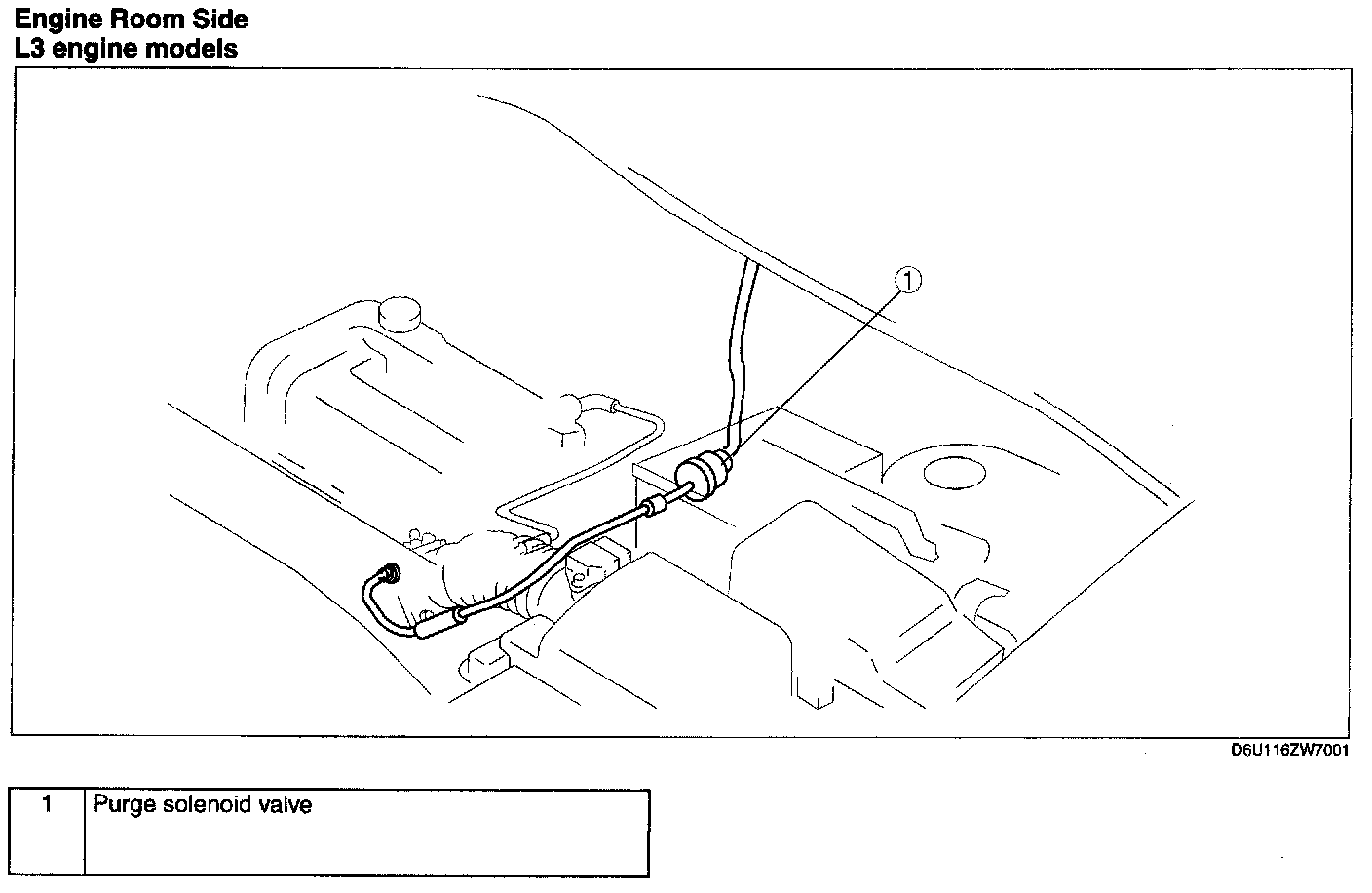

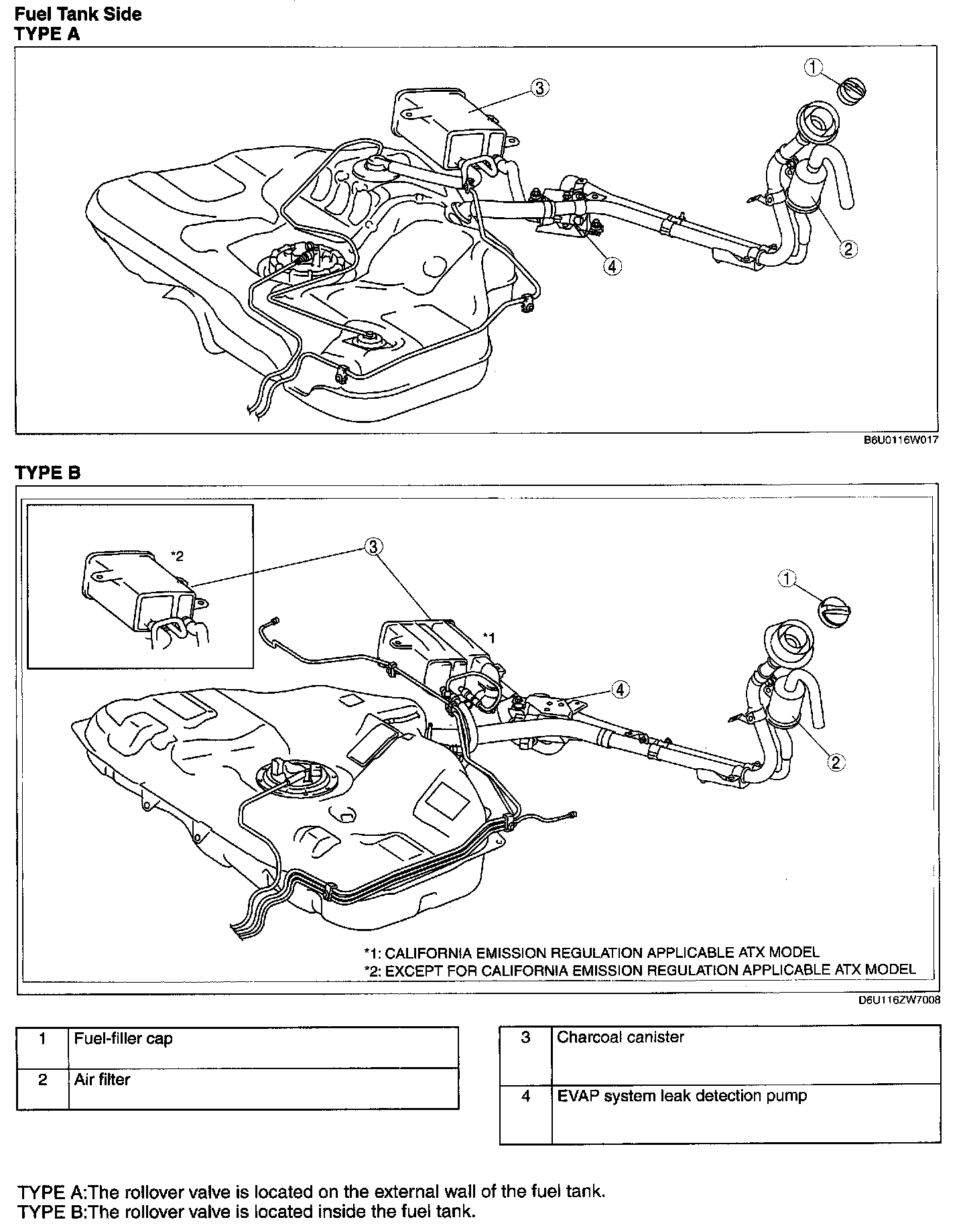

Evaporative Emission (EVAP) Control System Location Index:



Evaporative Emission (EVAP) Control System Location Index:
