Cylinder Head Cover Assembly Note

Cylinder Head Cover Assembly Note

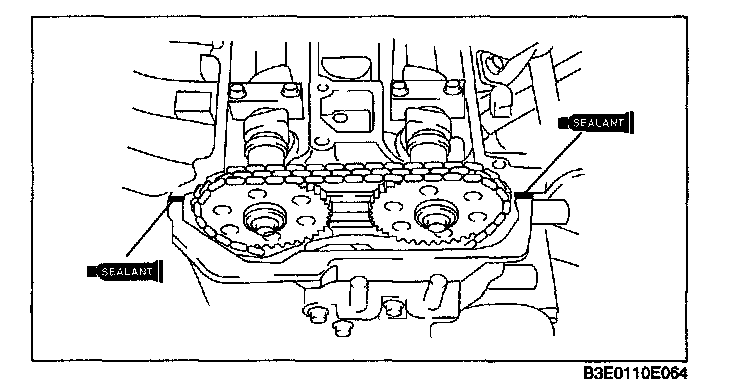

1. Apply silicone sealant to the mating faces as shown in the figure.

Caution:
- Install the cylinder head cover within 10 min of applying the silicone sealant.

Dot diameter 4.0-6.0 mm (0.16-0.23 in)
2. Install the cylinder head cover with a new gasket.

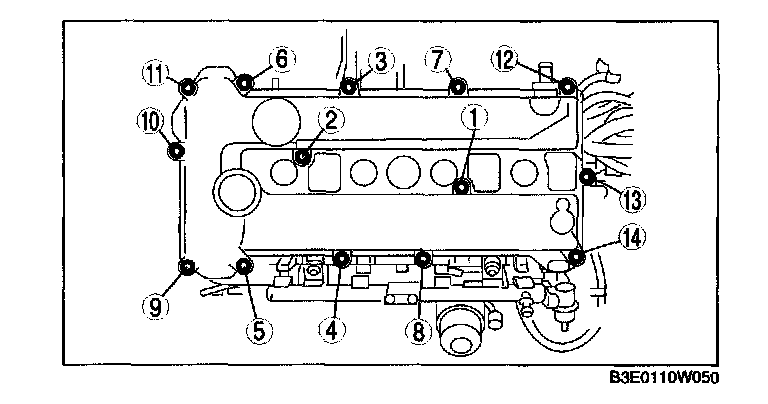

3. Tighten the bolts in the order shown in the figure.
Tightening torque 8.0-10.5 N-m (81.6-107.1 kgf-cm, 70.9-92.9 in-lbf)
