Rear

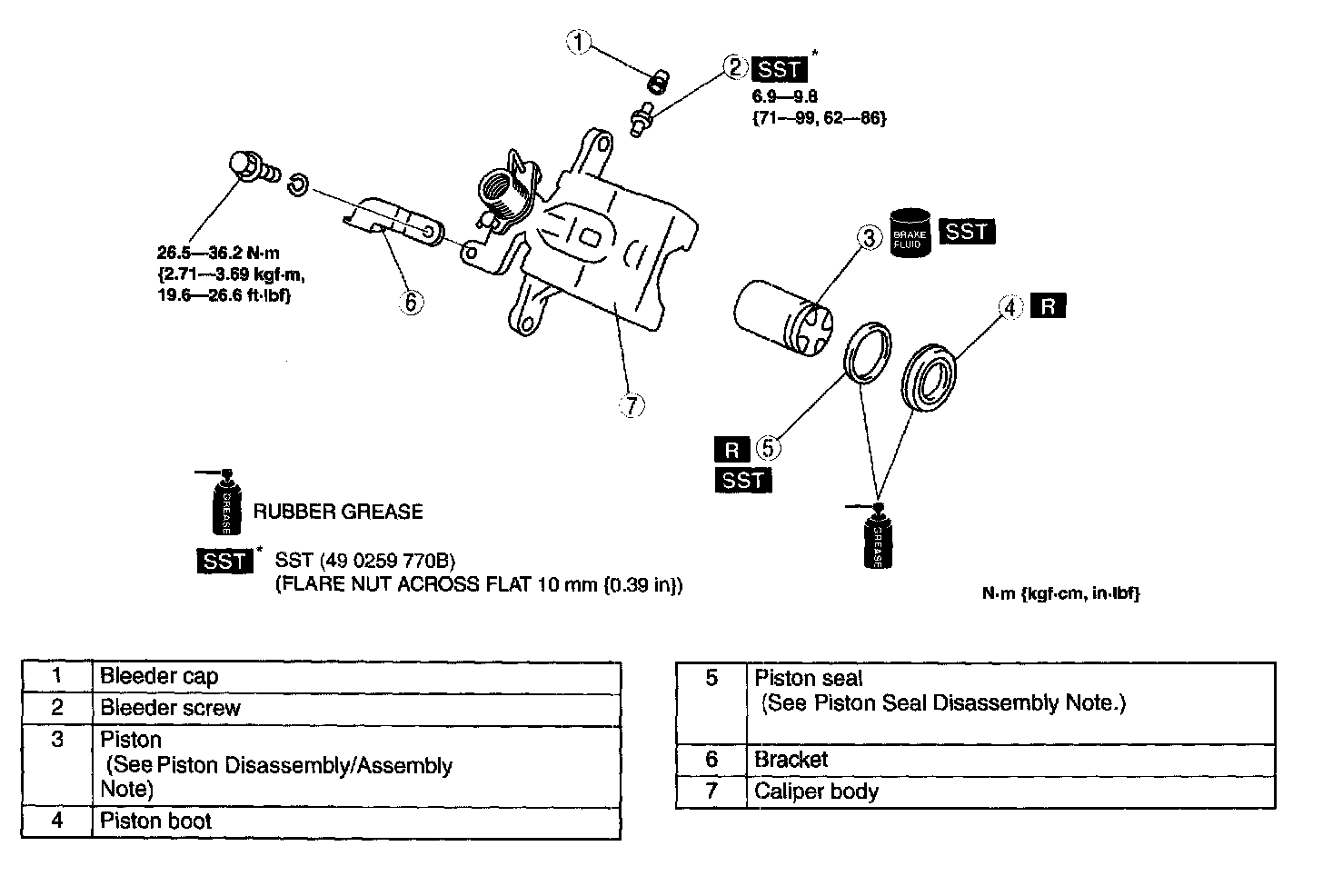

CALIPER (REAR) DISASSEMBLY/ASSEMBLY





1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Piston Disassembly/Assembly Note





^ Remove/install the piston using the SST.
