Air Bag System (SAS Control Module) Connector End View

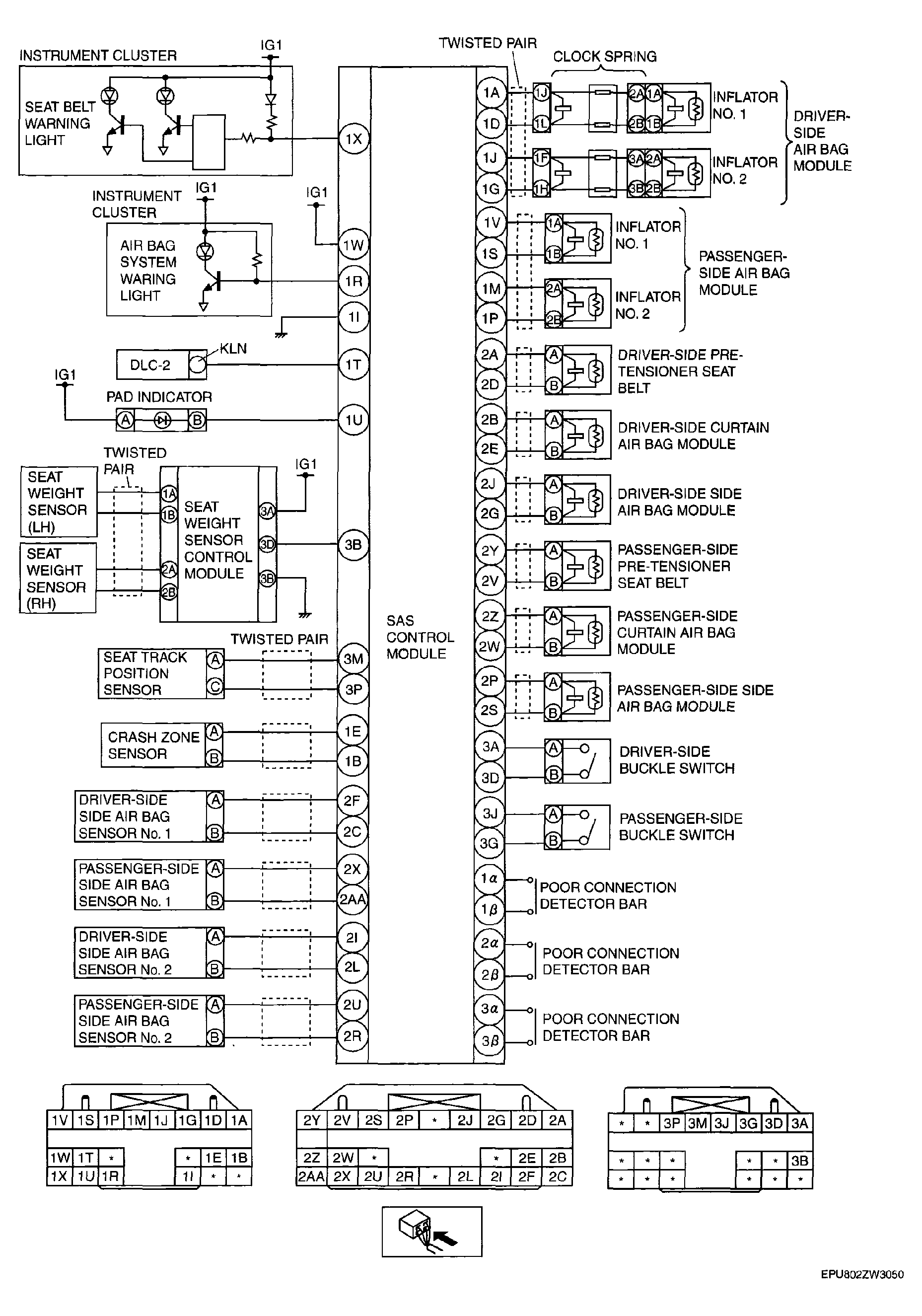

Fig 1: Air Bag System (SAS Control Module) Connector End View
G04316796Courtesy of MAZDA MOTORS CORP.
