Selector Lever Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

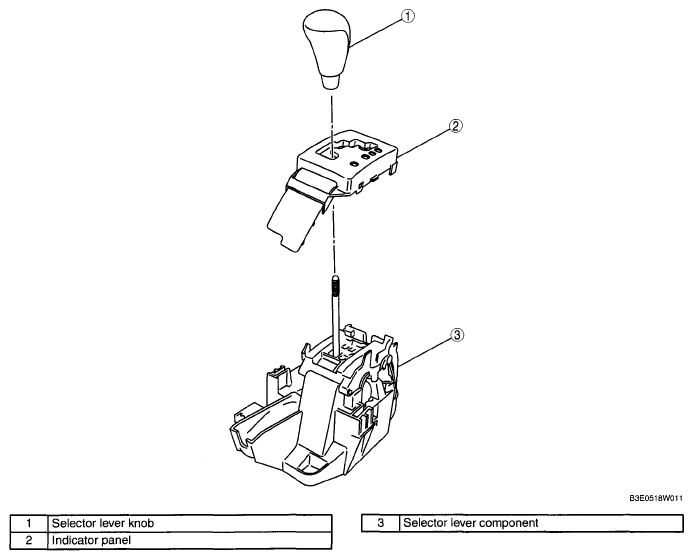

    Fig 1: Identifying Selector Lever Components
    G04956159Courtesy of MAZDA MOTORS CORP.
