DTC C1189: Notes
DTC C1189 DETECTION CONDITION POSSIBLE CAUSE
| DTC C1189 |
Brake fluid level sensor input circuit open |
| DETECTION CONDITION |

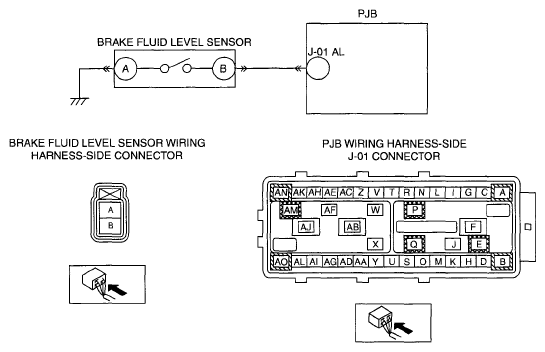

Open circuit in wiring harness between PJB and brake fluid level sensor |
| POSSIBLE CAUSE |
- Open circuit in wiring harness between PJB terminal J-01 AL and brake fluid level sensor terminal B
- Open circuit in wiring harness between brake fluid level sensor terminal A and body GND
- Brake fluid level sensor malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
