DTC B2574: Notes
DTC B2574 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2574 |
Driver door lock switch short to ground |
| DETECTION CONDITION |
Short to GND in wiring harness between PJB and driver-side door lock-link switch |
| POSSIBLE CAUSE |

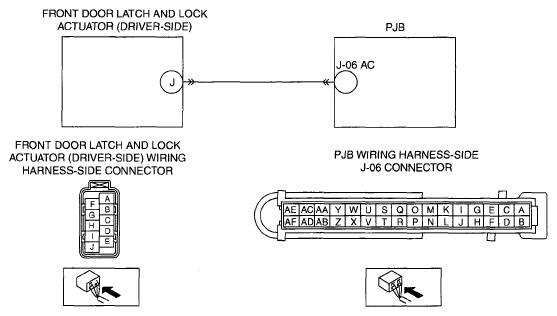

- Short to GND in wiring harness between PJB terminal J-06 AC and front door latch and lock actuator (driver-side) terminal J
- Front door latch and lock actuator (driver-side) malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
