DTC B2114: Notes
DTC B2114 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2114 |
Front washer switch input circuit short to battery |
| DETECTION CONDITION |

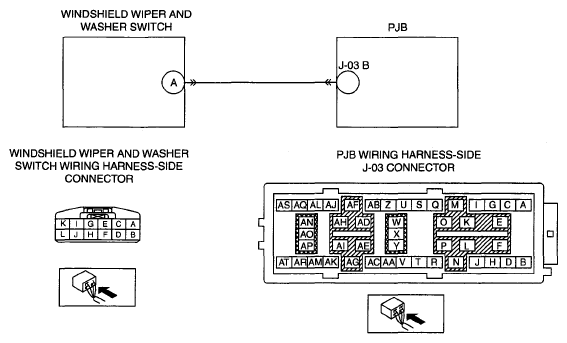

Short to power supply in wiring harness between PJB and windshield wiper and washer switch (front washer) |
| POSSIBLE CAUSE |
- Short to power supply in wiring harness between PJB terminal J-03 B and windshield wiper and washer switch terminal A
- Windshield wiper and washer switch malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
