DTC B2096: Notes
DTC B2096 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2096 |
Set switch circuit failure |
| DETECTION CONDITION |
Short to GND in wiring harness between PJB and driver-side door key cylinder switch (lock) |
| POSSIBLE CAUSE |

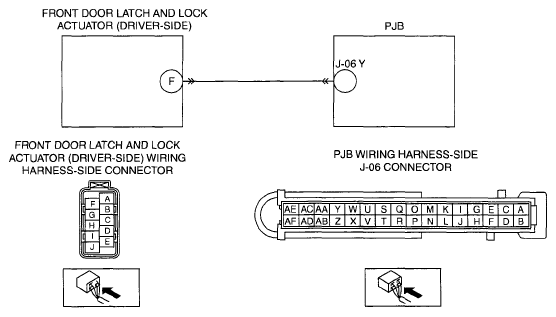

- Short to GND in wiring harness between PJB terminal J-06 Y and front door latch and lock actuator (driver-side) terminal F
- Front door latch and lock actuator (driver-side) malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
