DTC B2095: Notes
DTC B2095 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2095 |
Reset switch circuit failure |
| DETECTION CONDITION |
Short to GND in wiring harness between PJB and driver-side door key cylinder switch (unlock) |
| POSSIBLE CAUSE |

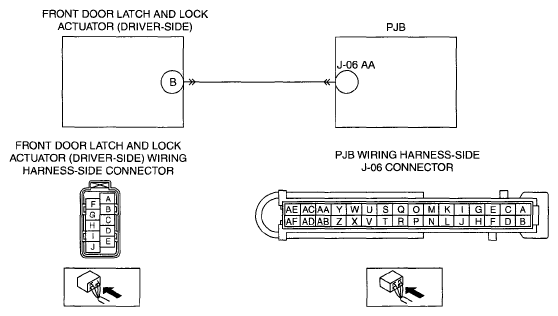

- Short to GND in wiring harness between PJB terminal J-06 AA and front door latch and lock actuator (driver-side) terminal B
- Front door latch and lock actuator (driver-side) malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
