DTC B1328: Notes
DTC B1328 DETECTION CONDITION POSSIBLE CAUSE
| DTC B1328 |
Door ajar RF circuit open |
| DETECTION CONDITION |
Open circuit in wiring harness between PJB and front door latch switch (passenger-side) |
| POSSIBLE CAUSE |

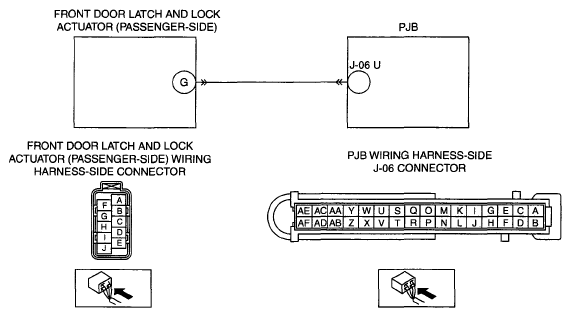

- Open circuit in wiring harness between PJB terminal J-06 U and front door latch and lock actuator (passenger-side) terminal G
- Front door latch and lock actuator malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
