DTC B1311: Notes
DTC B1311 DETECTION CONDITION POSSIBLE CAUSE
| DTC B1311 |
Unlock switch circuit open |
| DETECTION CONDITION |
Open circuit in wiring harness between PJB and driver-side door lock-link switch (unlock signal) |
| POSSIBLE CAUSE |

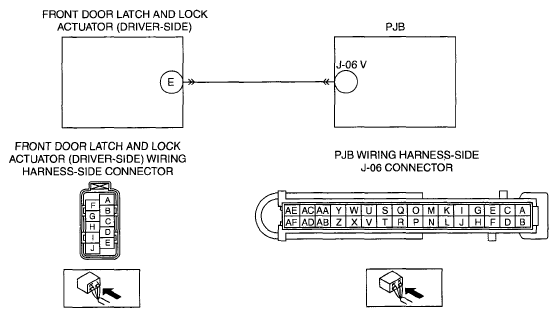

- Open circuit in wiring harness between PJB terminal J-06 V and front door latch and lock actuator (driver-side) terminal E
- Front door latch and lock actuator malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
