Valve Seal Assembly Note

Valve Seal Assembly Note

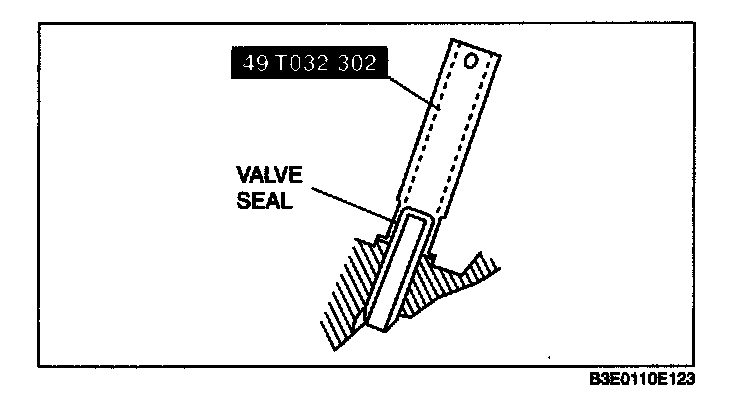

1. Press the valve seal onto the valve guide by hand.
2. Lightly tap the SST using a plastic hammer.
