Transaxle Rear Support Insulator: Notes

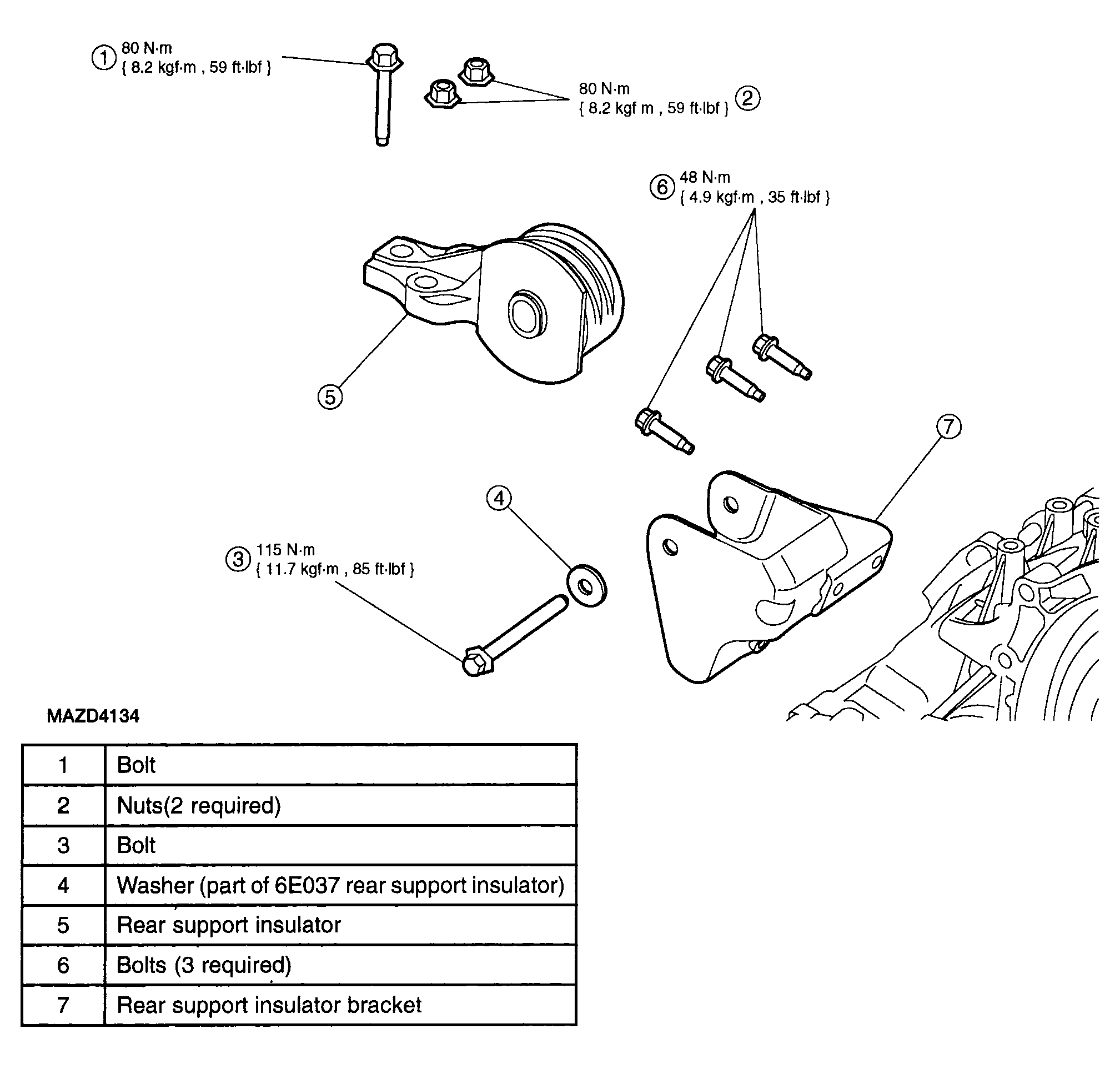

Fig 1: Transaxle Rear Support Insulator With Torque Specification
G04321005Courtesy of MAZDA MOTORS CORP.
