[SJ6A-El] Automatic Transmission/Transaxle

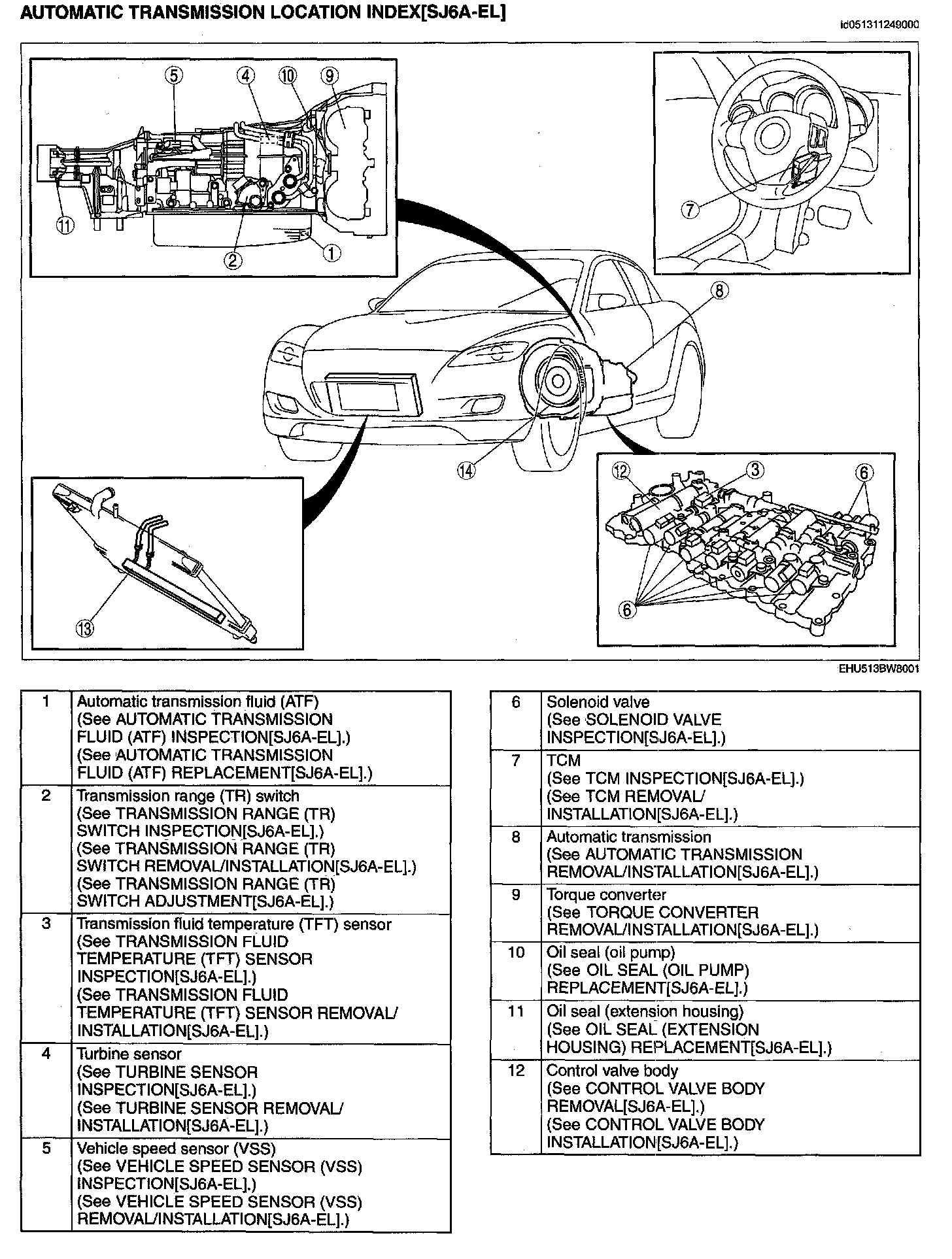

Automatic Transmission Location Index [SJ6A-EL]:



Automatic Transmission Location Index [SJ6A-EL] 13-14:
