ABS HU/CM Inspection

ABS HU/CM INSPECTION

1. Disconnect the ABS HU/CM connector.
2. Connect the negative battery cable.
3. Attach the tester lead to the ABS HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

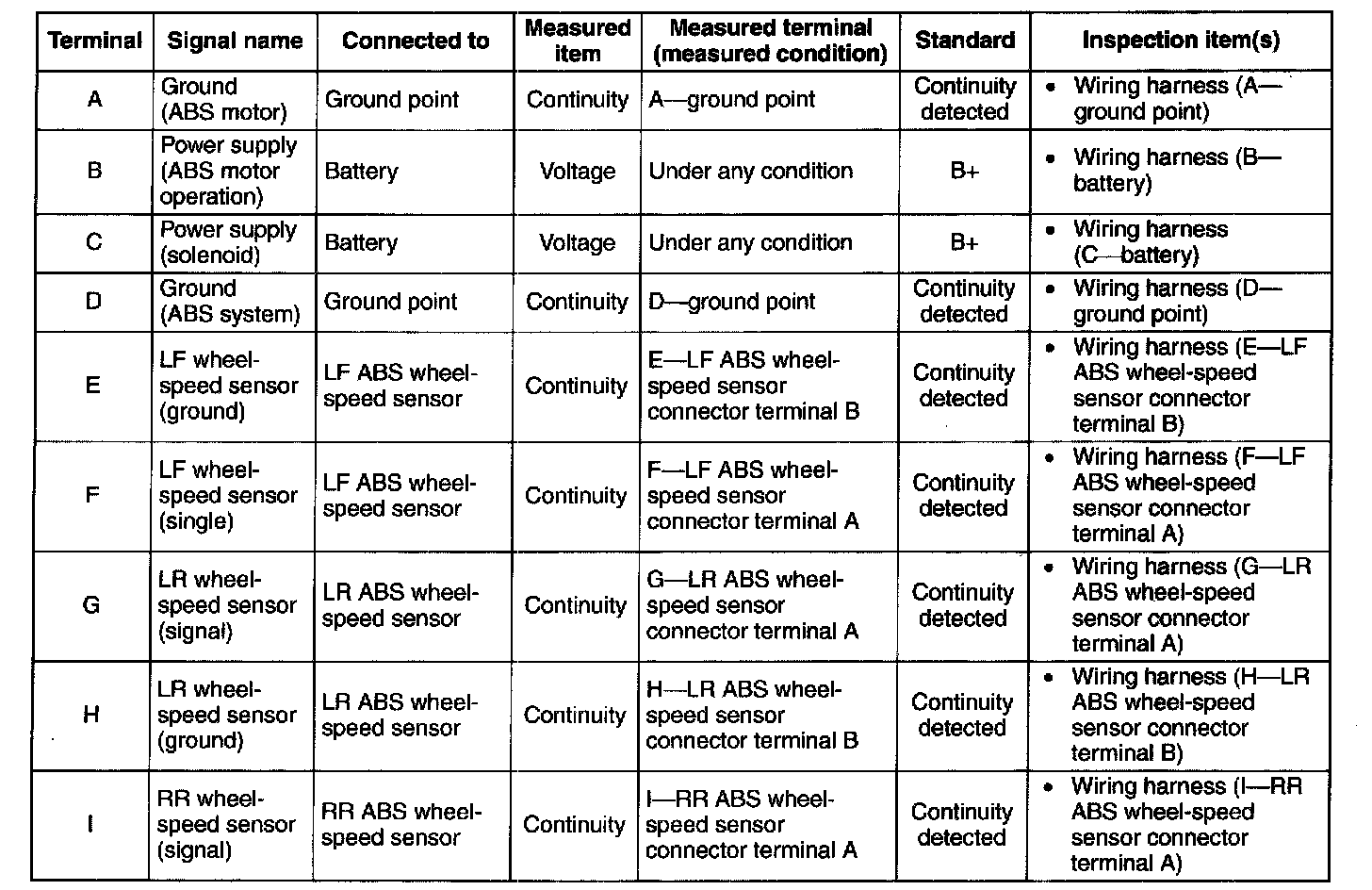

Standard (Reference Value) (part 1):




Standard (Reference Value) (part 2):

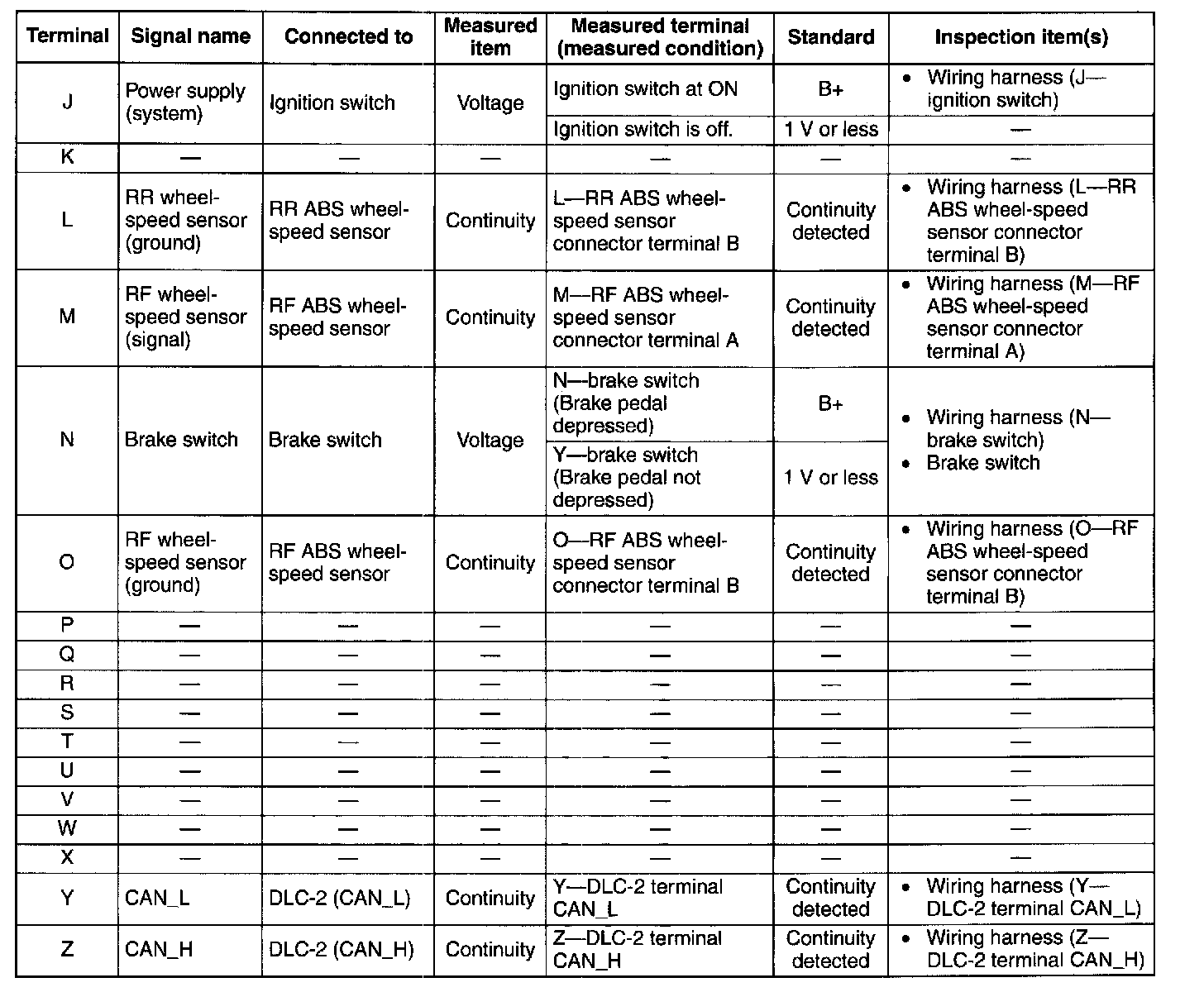

Standard (Reference Value) (part 3):
