PID/Data Monitor Table

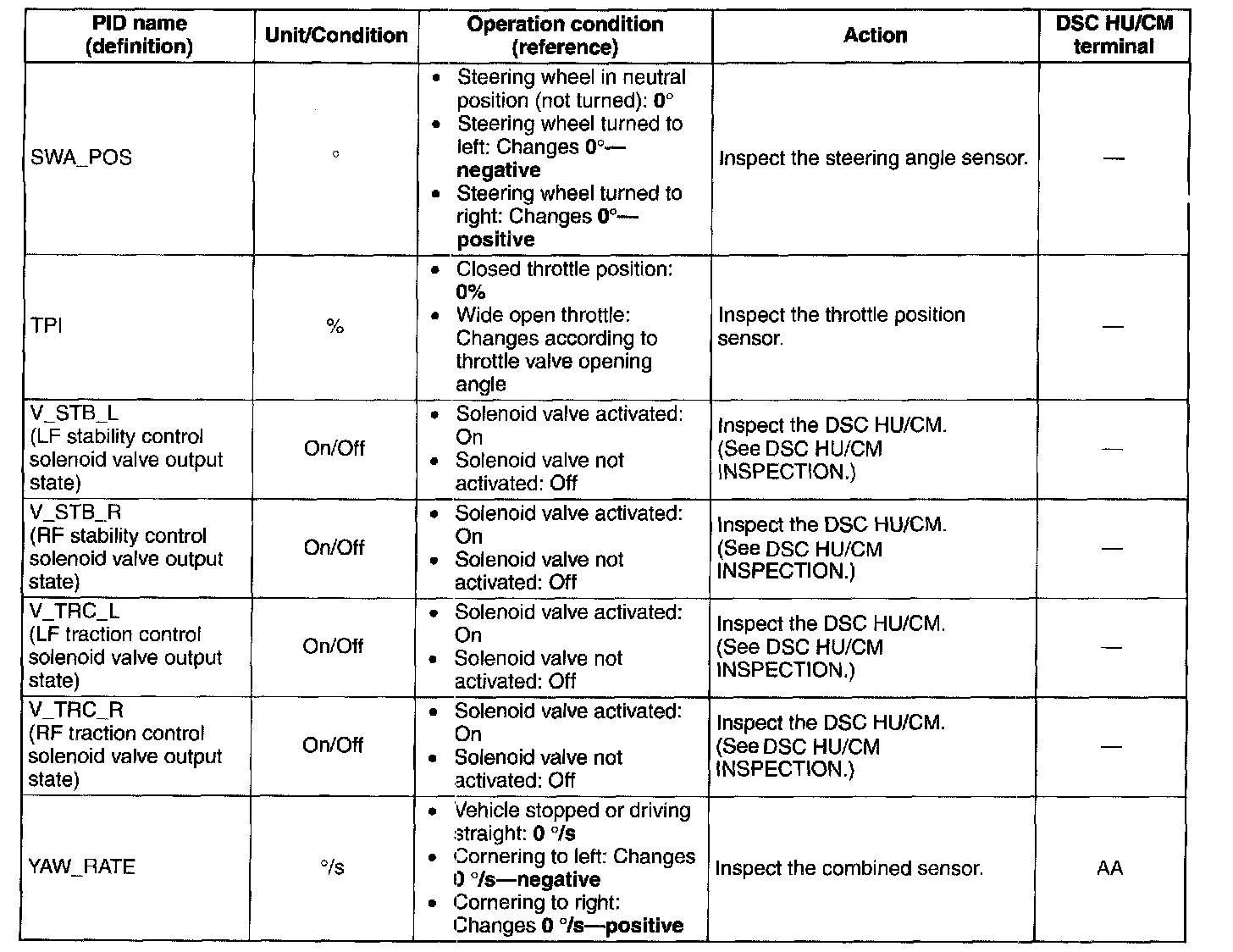

PID/DATA Monitor Table

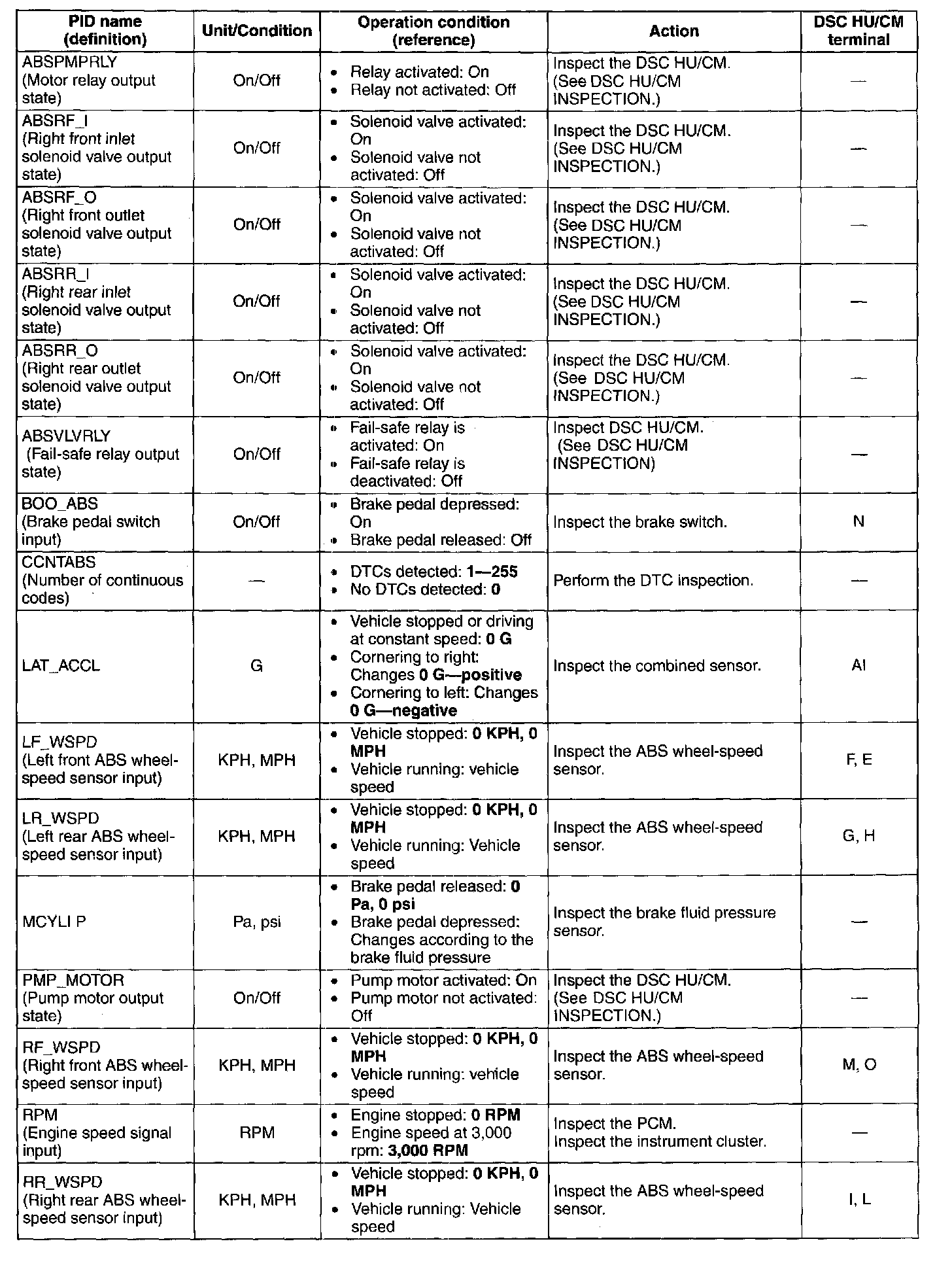

PID/DATA Monitor Table (part 2):

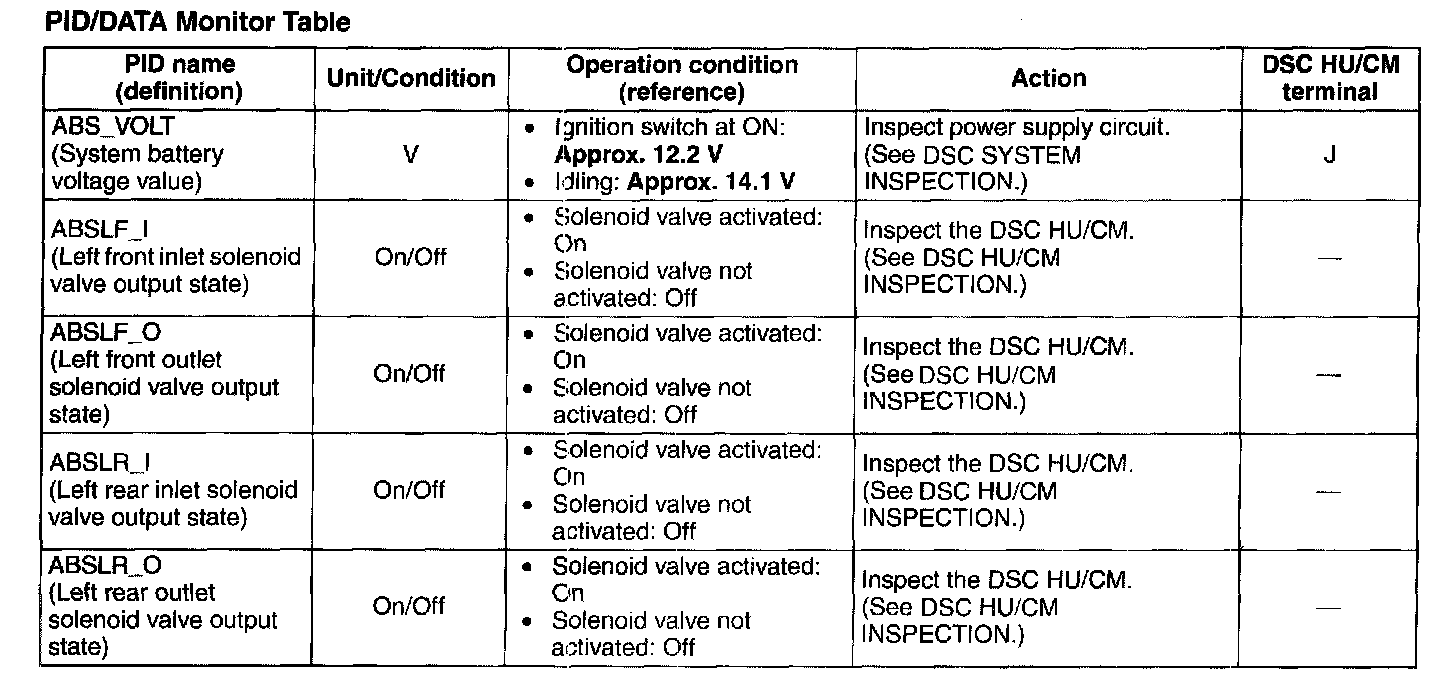

PID/DATA Monitor Table (part 3):
