PID/Data Monitor Table

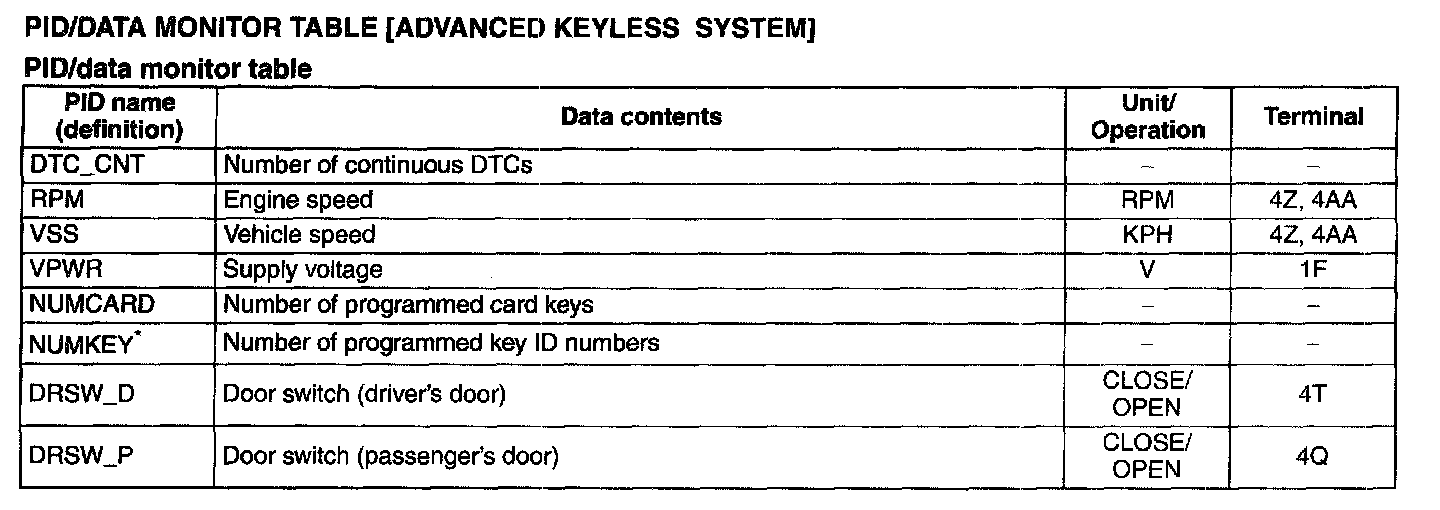

PID/Data Monitor Table [Immobilizer System (Advanced Keyless System)]:



PID/Data Monitor Table [Immobilizer System (Keyless Entry System)]:

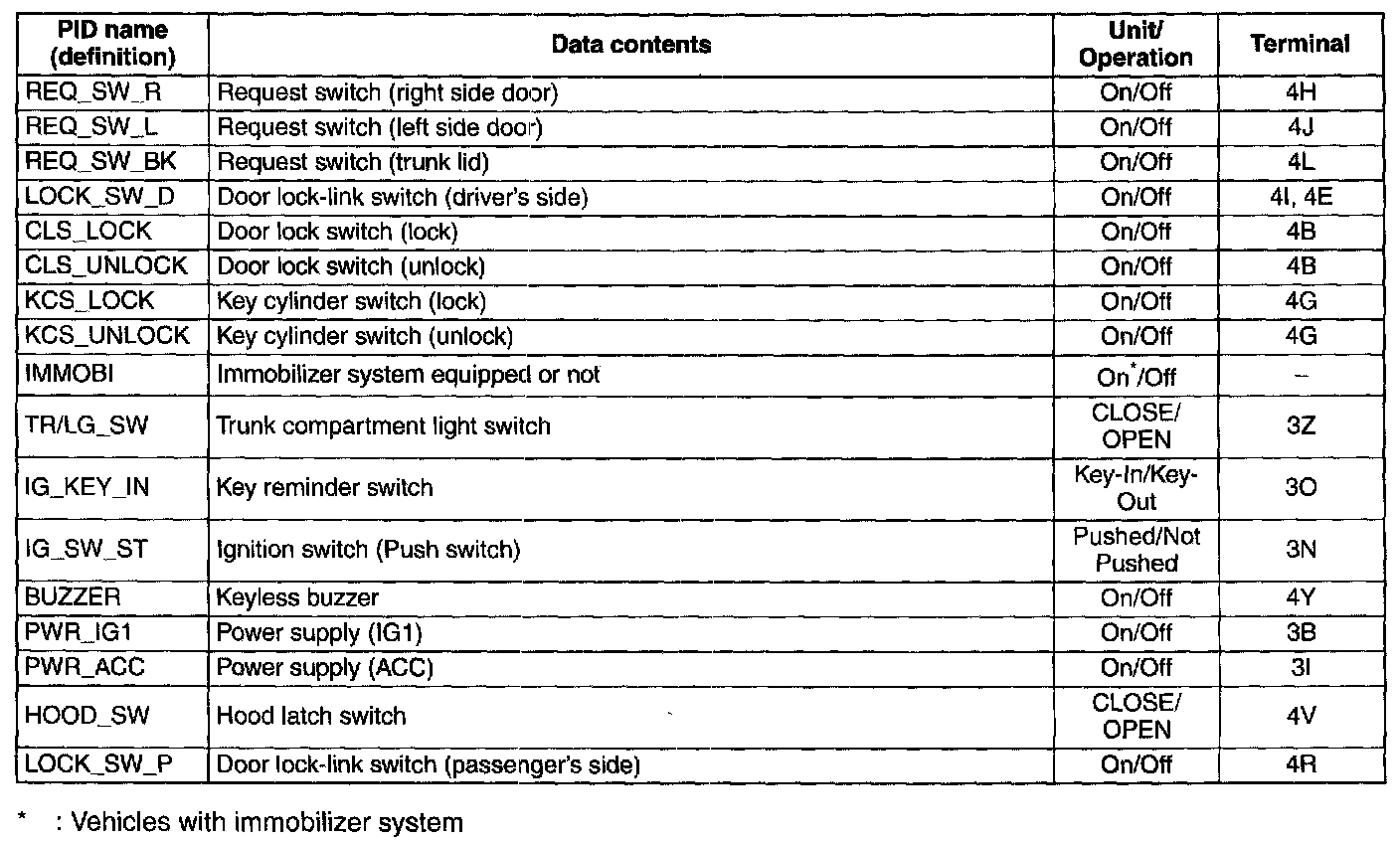

PID/Data Monitor Table Part 1:



PID/Data Monitor Table Part 2:
