Keyless Entry System

KEYLESS CONTROL MODULE INSPECTION [WITH KEYLESS ENTRY SYSTEM]

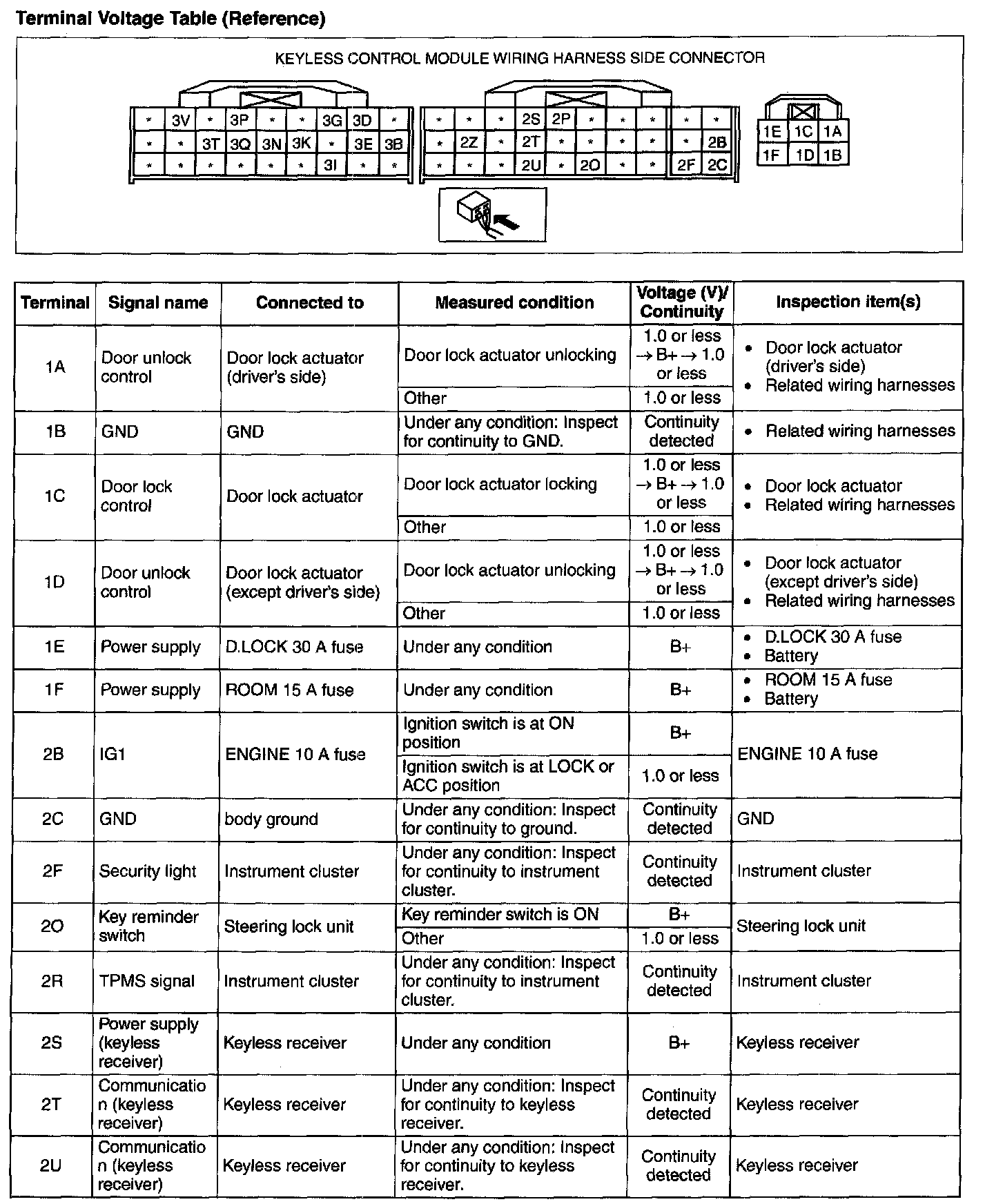

Terminal Voltage Table (Reference) (Part 1):

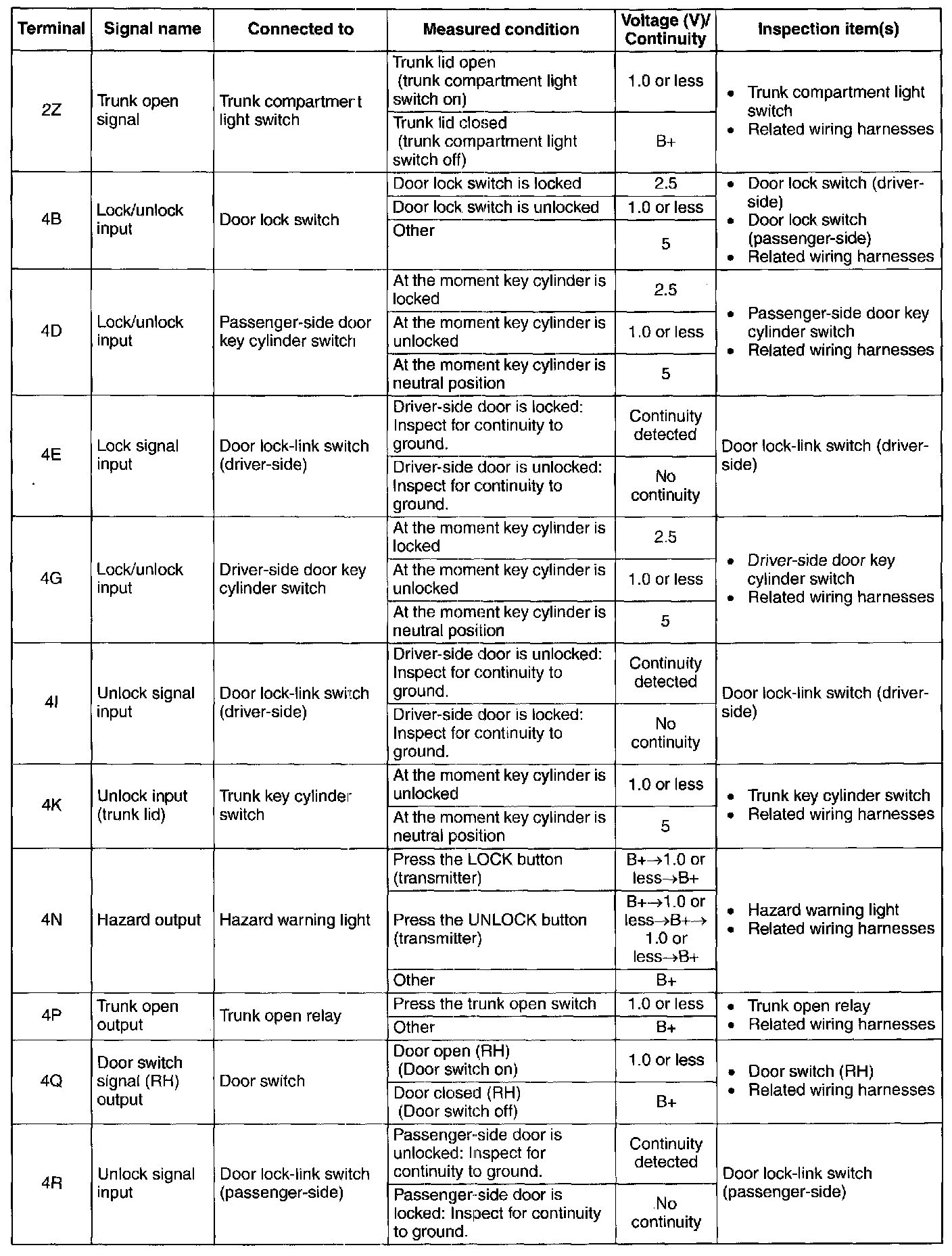

Terminal Voltage Table (Reference) (Part 2):

Terminal Voltage Table (Reference) (Part 3):

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item (s)" and related wiring harnesses.
