Power Window Regulator Disassembly/Assembly: Notes
- Remove in the order indicated in POWER WINDOW REGULATOR COMPONENTS TABLE
.

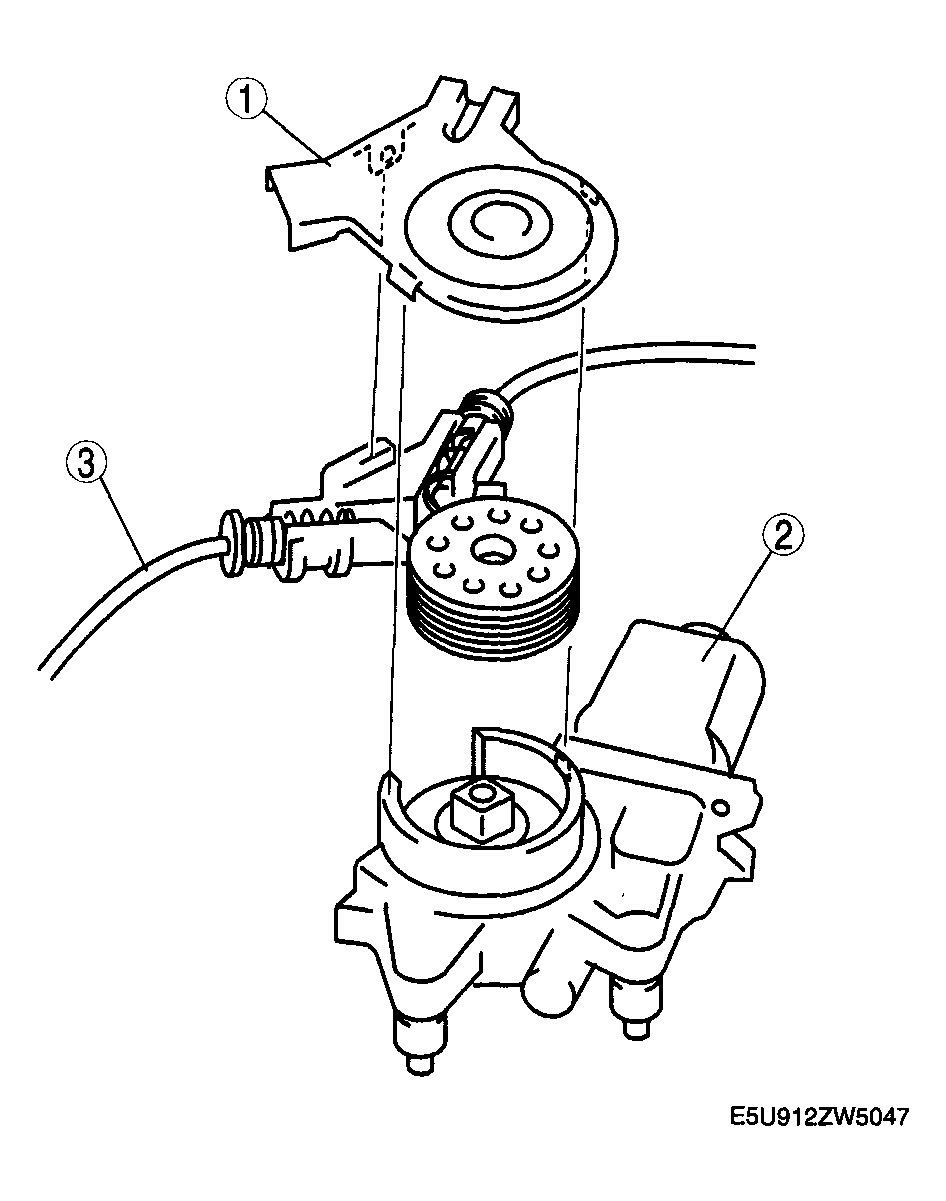

POWER WINDOW REGULATOR COMPONENTS TABLE
| 1 |
Cover (See COVER DISASSEMBLY NOTE |
| 2 |
Power window motor |
| 3 |
Frame |
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
NOTE:
- When installing the power window motor, be careful that the cable does not become unwounded from the drum.
